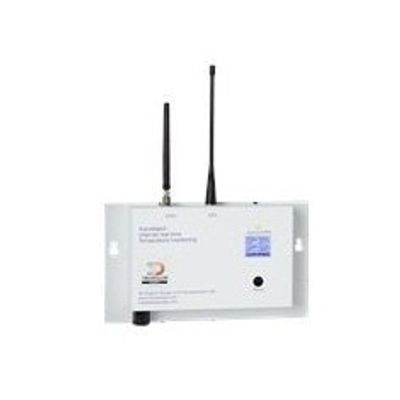

3D TempulogModel TTW -2 Channel 2 Door Data Logger

SHARE

This 2 channel 2 door data logger is perfectly designed to be used in the distribution of several products including: Pharmaceuticals, Raw & Prepared foods, Pathology & lab samples, Blood products & many more.  It has a clear and bright LCD display with integral alarm buzzer which will alert the driver when the temperature is out of limits or a door is left open for too long.  Data is sent to a secure SQL database using a built-in GPRS modem and regular intervals allowing users on site to view graphical and tabluated reports and trends.  This unit also HFEA, CPA, MHRA & FDA 21 CFT Part 11 compliant. Temperature range -50°C to +50°C

Most popular related searches
  • Part Number TTW
  • 2 Channels
  • Temperature -50°C to 50°C
  • PT100 Class A 4 wire
  • Accuracy +-0.2°C
  • Maximum probe length 30 meters
  • Process signal input 2 x 4-20 mA (Fully scalable)
  • Door Open/Close 2 volt free contacts
  • LCD display 2 temperatures, 2 door states
  • Logging rate every 1 to 240 minutes
  • Alarm buzzer and ultra-bright alarm LED
  • 64000 readings
  • Connects directly to vehicle battery
  • Dimension: HWD 125 mm x 200 mm x 40 mm
  • Weight: 700 g
