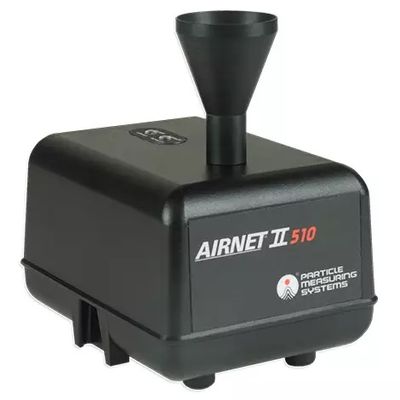

PMS - Model Airnet- II / IIs -2 Channel Remote Air Particle Counter

A simple and cost-effective way to monitor your cleanroom, the Airnet II Air Particle Sensor provides unparalleled performance with data transmission capabilities for remote monitoring.

Versatile power options combined with an ultra-small footprint make the Airnet II Air Particle Sensor easy to install right where you need it. The unit can be configured to accept distributed power from an in-house system, local power plugin (Polycarbonate version only), or Power over Ethernet (PoE).

Data integrity is maintained through the use of a data queue feature that continues to gather data even if communication is lost due to a power outage. To ensure proper flow conditions and vacuum system operation, these units incorporate a Dynamic Flow Sensing system that will alarm with a 15% change in flow conditions.

For situations where sampling is required during the vaporized hydrogen peroxide (VHP) sterilization process, an optional VHP-compatible unit is available for a simple installation without complex valving. Download the Airnet® 510 XR Resilience to Vaporized Hydrogen Peroxide app note.

Particle Measuring Systems engineers, manufactures, installs, calibrates, repairs, and maintains the Airnet® II particle counter.

• Proven technology provides reliable and accurate data
• Allows for immediate reaction to particle contamination events
• A low-cost solution for multipoint monitoring
• Interfaces with Facility Net, Pharmaceutical Net and FacilityPro Software for comprehensive management of cleanroom conditions
• A small footprint and wall mounting bracket make it easy to install in cleanrooms and mini-environments.
• A laser diode (LD) drastically reduces the need for maintenance and extends product lifecycle.
• Automatic laser shutdown reduces laser failures.
• Data queue maintains data integrity when communication is lost.
• Optional XR coating protects sensors against corrosive or oxidizing vapors in VHP sterilization processes.

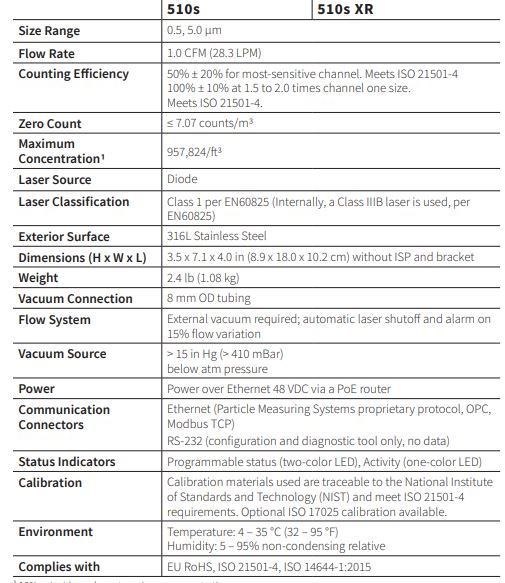

• 2 channels
• 0.5 and 5.0 μm size range, suitable for Pharmaceutical application
• 1.0 CFM flow rate
• Interfaces with object linking and embedding (OLE) for process control (OPC) communications, Modbus communications
• Chemical-resistant 316L Stainless Steel enclosure
• Low sample point cost
• Small enough for use in remote locations
• ISO 14644-1:2015 Compliant
• ISO 21501-4 Compliant

• Cleanroom monitoring
• Dedicated monitoring of critical locations
• Trend analysis
• Statistical process control
• Multi-location monitoring
• Isolator monitoring
