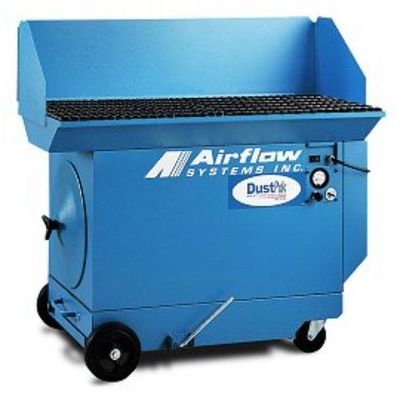

Lev-Co - Model DTH1700 - 05-004 -2`D X 4`W Self-Contained Downdraft Table

Draws contaminants away from workers’ breathing zone without hindering movement.

Its large work area is easily utilized in a range of applications.

Its use of (2) CLEAN-2 cartridge filters and the manual VIBRA-PULSE cleaning system makes this ideal for welding and other light dust/smoke applications.

Available with:

• Filter Options
• Extraction Arms
• Localized Enclosures and Shields
• Fan/Motor Upgrades or Options
• Silencer Option
• Preventative Maintenance Pressure Gauges
• VFD Options
• Fan, Light & Other Electrical Accessories

• 12, 14 & 16 gauge painted steel cabinet with a powder-coat finish
• Removable end cap for easy access to filter
• Removable panel for access to direct drive motor/blower
• Wired to an external junction box. (Motor starter not included) (230/1 & 3-Phase units only)
• Unit: 31”D x 48.5”W x 47”H w/ shields
• Table Top workspace: 24``D X 48’’W

• Integral collection area and work surface:Draws contaminants away from workers’ breathing zone without hindering movement; easily moved to any location in the facility.
• Direct-Drive Blower:Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
• Non-electrostatic operation:High reliability, low maintenance.
• Compressed filter mounting:Eliminates contaminant bypass of filters.
• Low profilecabinet Easy access speeds filter changeout and maintenance.
• Vibra-Pulse® Filter Cleaning System:Cleans filters 75% more effectively than reverse pulse systems.
• Dust Drawer:Easily remove external dust drawer with positive lever lock.

Top 5 contaminants/processes/applications:

• Welding
• Composite Dust
• Deburring Dust
• Grinding Particles
• VOC gases

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

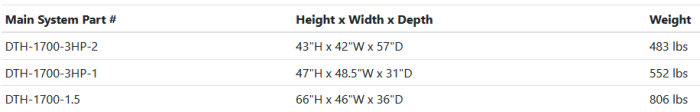

DTH-1700-1.5
1.5 Hp TEFC, Base unit.... DTH-1700 downdraft table. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

DTH-1700-3HP-1
DTH-1700 downdraft table with a 3 HP TEFC motor 220/3/60 Hz

DTH-1700-3HP-2
DTH-1700 downdraft table with a 3 HP TEFC motor 575-600/3/60 Hz. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

• Filter Options (when ordering with main unit)
• Extraction Arms
• Replacement Filters
• Localized Enclosures and Shields
• Sound Attenuation
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
• Accessories
