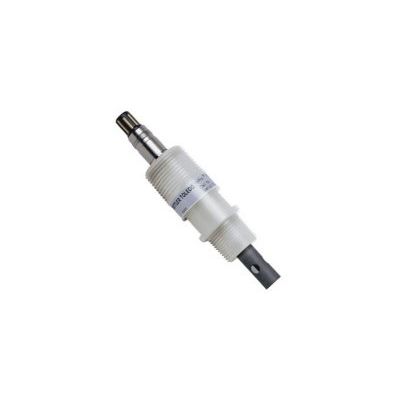

InPro - Model 7000-VP -2-electrode Conductivity Sensor

Specifications - InPro 7000-VP 2-electrode Conductivity Sensor

Cell constant: 0.1 1/cm (nominal)
Meas. Range / Transmitter: 0.02-10000 µS/cm
Temperature range: -10...100 °C (14...212 °F)
Max. pressure (bar): 34 bar (25 °C), 7 bar (95 °C)
Max. pressure (psi): 500 psi (77 °F), 100 psi (203 °F)
Design: Titanium
Shaft material: PVDF
O-rings, insulation: Viton® (FDA), PEEK (FDA)
Accuracy (cell constant): ±1.0 %
Temperature accuracy: ±0.25 °C at 25 °C
Temperature sensor: Pt1000
Segment /Application: Pure and ultrapure water
VITON is a registered trademark of E. I. Du Pont de Nemours and Company Corporation

Description

The sensor can easily be installed in a customer supplied pipe-tee via the 3/4" NPT thread. The electrodes made of titanium allow to use this sensor in virtually all applications with conductivity values up to max. of 10 mS/cm.

Features and Benefits

Wide measuring range

WideRangeTM technology enables an almost universal use of this sensor starting from ultrapure water to drinking water and salt solutions. This allows standardization of your plant with one sensor type - cost savings and simple spare parts management included.

Increased process reliability

The IP68 rated VarioPin connector system ensures excellent signal transmission and avoids problems associated with humidity. This also saves money compared to fixed cable installations and makes handling much more comfortable.

Easy to install

Just screw the sensor into a pipe-tee via the 3/4" NPT thread.
