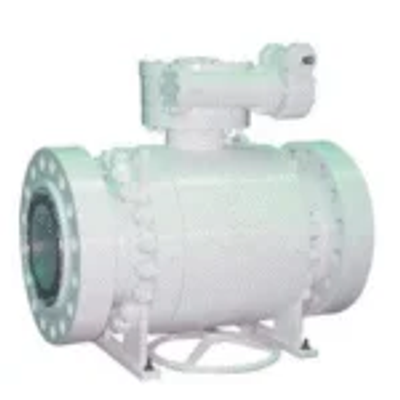

Oilong - 2-PC / 3-PC Trunnion Mounted Ball Valve

SHARE

Oilong Trunnion Ball Valves, also known as Fixed Ball and Mounted Ball Valves, available in 2-Piece or 3-Piece Ball Valves in Stainless Steel CF8M / CF8 or Carbon Steel WCB material with class 150, class 300, and class 600.

Most popular related searches
ball valve
quarter-turn ball valve
3-piece ball valve
trunnion mounted ball valve
trunnion mounted valve
2-piece ball valve
hydraulic pneumatics
fireproofing
  • Design standard: API 6D
  • Flange ends: ASME B16.5/ASME B16.47
  • BW ends: ASME B16.25/ ASME B31.8
  • Fireproof test: API 607/API 6FA
  • Inspection and test: API 6D
  • Pressure and temperature: ASME B16.34
  • Range: NPS 1-1/2″~NPS 60″,CL150~CL2500
  • Body material: WCB?LCB?WCC?CF8?CF8M?CF3?CF3M?A890 4A etc.
  • Seat material: PTFE?RPTFE?NYLON?DEVLON?Derlin?PEEK?PPL?HNBR?FKMor metal hard seal etc.
  • Operation: Handle, gear, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic, etc.
