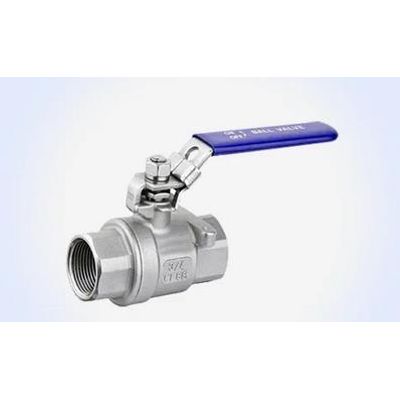

Pharmach - Model 1000WOG, 2000WOG Series -2 Piece Ball Valve
2 Piece Stainless Ball Valve is made of stainless steel and has a spring-return lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve is made of stainless steel for resistance to corrosion and has a stainless steel spring-return handle with a vinyl sleeve for manual on/off control. This valve closes automatically when its spring-return lever is released, ensuring that the valve is open only when an operator is at hand.
Most popular related searches
Structure Style
- Full Port, With/Without Top Mounted
- Flange Drilling: ASME B16.5, GB/T 9113, JB/T 79
- Made of stainless steel for resistance to corrosion
- Stainless steel spring-return lever handle to ensure the valve is open only when an operator is at hand
- Pounds per square inch (gauge) (psig) rating of 2,000 for water, oil, and gas (WOG) for 1/4″ to 1″ valves; 1,500 for 1-1/4″ to 2″; and 150 for saturated steam
- Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes
- PTFE seats and stem packing reduce the risk of valve leakage
- Size 1/4″-4″ DN10-DN100
- Pressure Class 1000WOG, 2000WOG
- End Connection Flange, BSPT, NPT, SW, BW
- Body Material CF8, CF8M, CF3, CF3M
- Ball Material SS304, SS316, SS304L, SS316L
- Seat Material RTFE
- Stem Material SS304, SS316, SS304L, SS316L
- Design Standard ANSI B16.34, GB/T 12224
- Face to Face Standard ASME B16.10, GB/T 12221, GB/T 15188.1
- Test Standard API 598, GB/T 13927
- Temperature Range -20?~280?
- Actuator Options Manual, Pneumatic, Electric
