Super Radiator - 2-Row Steam Coil

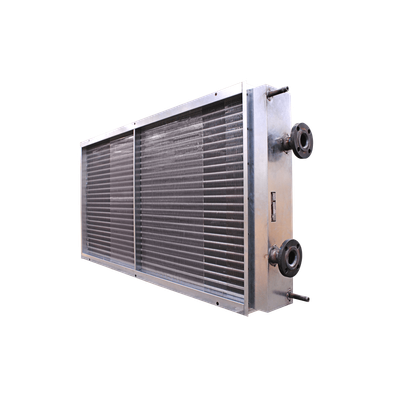

This 2-row steam coil features carbon steel tubes with aluminum fins and an enclosed header assembly. It`s designed for vertical airflow with offset connections. 150# carbon steel flanges are factory installed. Trim rings are installed to reduce field sheet metal work.
Typically, these coils are built with thicker materials due to steam temperature/pressures, added chemicals, dissolved air in the steam, and/or the high velocity of steam traveling through tube openings.
To get the most out of a steam coil design, all condensate must be removed. This can be achieved through a pitched design and/or ensuring that the steam has sufficient velocity. Without removal, users can expect decreased thermal performance or experience water hammer-type effects or coil failure.
Our steam coils are used in several industries, including food storage & processing, power generation, HVAC, and military.
- Opposite or same end connections
- Pitched casing for proper condensate removal
- Enclosed header construction
- Thin wall tubing for low steam pressures (5 - 15 psig) to heavier wall tube for higher pressure steam (150+ psig)
- Aluminum fin
- Carbon steel tube and fin
- Copper tube and fin
- Cupro-nickel 90/10 tube and fin
- 304/316 Stainless steel tube and fin
