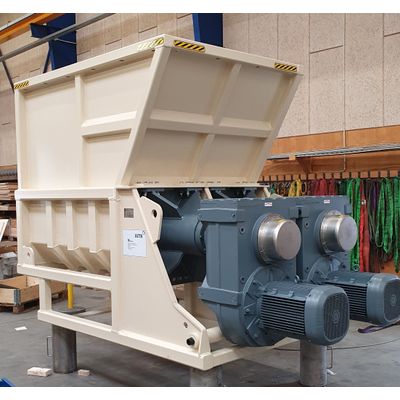

ACTA - Model 32342-AR730520 -2-Screw Crusher for Gypsum Waste

SHARE

32342-AR730520 – ACTA 2-screw crusher, for processing gypsum waste. Features: Standard 2-screw setup, with loading from gear side. Equipped with 9 fingers rotation knife + 2 fixed knifes (changeable). Painted in customers required color. Reliable gear and motor setup.

Most popular related searches

waste handling transportation

waste handling transport

gypsum waste recycling

waste transport

gypsum recycling

recycling materials handling

Weight: 6.200 kg
Hopper inlet dim.: 1400x2050mm.
Hopper volume. approx.: 3,5 m3

Outlet capacity: 2-5 ton/hour
All outlet capacities are approximated and depends on working conditions and type of material to be processed.
Please contact sales for ACTA for more exact information.

Screw speed: Approx. 12 rpm
Motor power: 2 x 18,5 kW
Electrical conn.: 3x400 V - 50 Hz
Prefuse (App.): 120 Amp

House: Bin
Industry Gypsum handling, Recycling, Waste handling
Transported material: Gypsum
Surface treatment: Carbon steel – painted
Product type: ACTA crusher
