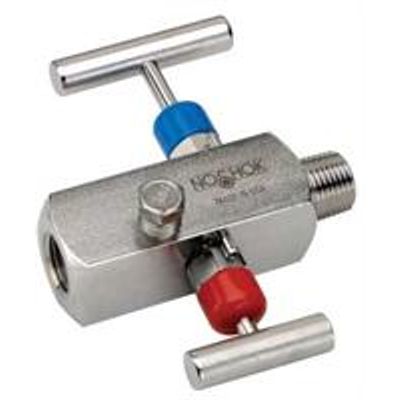

NOSHOK - Model 2070 Series -2-Valve Block & Bleed, Hard Seat Needle Valves
FromNoshok, Inc.
Combines isolating and venting in a single valve, eliminating the need for tubing and fittings. Block valve isolates the downstream process fluids, and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation. The 1/4" NPT vent plug is located 90° to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location. 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability. 10,000 psi hard seat pressure rating @ 200 °F. Blow-out proof stem provides a secondary stem seal in the full open position.
Most popular related searches
needle valve
bleed valve
helium leak detection system
process fluid
exhaust pipe
isolation valve
helium test
corrosion protection
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Grafoil® packing optional
- All stems are 316 stainless steel
- All stem threads are rolled for strength and ease of operation
- One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Slotted spring pin to prevent accidental loosening
- Vinyl dust cap for bonnet and stem (non-packing)
- Materials: Zinc-nickel plated steel, electropolished 316 stainless steel*
- Connections: 1/2" & 1/4" NPT
- Male-female & Female-female configurations available, right venting optional
- Pressure ratings**: 10,000 psi @ 200 °F
- Orifice size: 0.187"
- Flow coefficient: CV 0.44
- Steam seal & type: All 316 stainless steel stems with FKM o-ring and PTFE back-up ring below the threads, PTFE or Grafoil® packing optional
- Length: 4" standard and 5-3/8" extended length available
- Options: Panel mountings, o-ring materials, handles, packings, regulating stem and stem tips
- Weight: Approximately 2.0 lb., extended model 2.7 lb.
