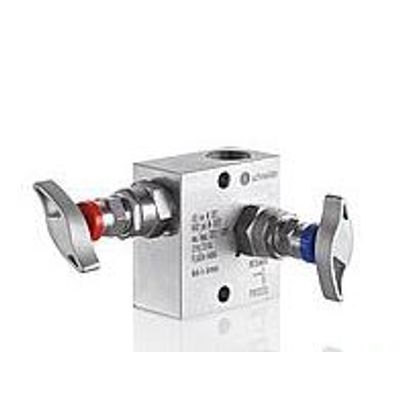

Armaturenfabrik - Model PL Type (L-Shaped) -2 Valve Manifolds
AS-Schneider L-Shaped 2 Valve Manifolds are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard.
Most popular related searches
pressure transmitter and switch
gauge pressure transmitter
manifold valve
pressure gauge
pressure transmitter
pressure transmitter switch
instrument valve
pipe plug
pressure switch
connection head
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.
Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:
Example for a typical product acc. to the below mentioned Ordering Information:
Part No.: PLAASA-N4N4
- P: L-Shaped Manifold
- L: Manifold Type: L-Shaped Bonnet Orientation
- A: Vent Connection: 1/4 NPT Female
- A: Inlet x Outlet: Female x Female
- S: Material: 1.4401 / 1.4404 / 316 / 316L
- A: Bonnet: PTFE
- -
- N4: Inlet Thread Size: 1/2 NPT
- N4: Outlet Thread Size: 1/2 NPT
