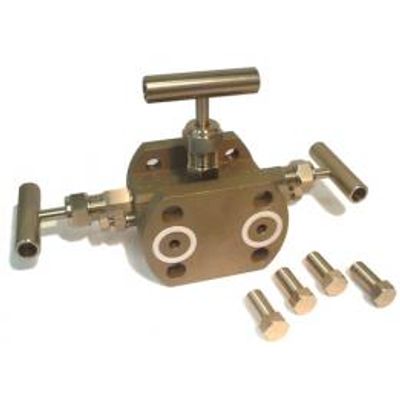

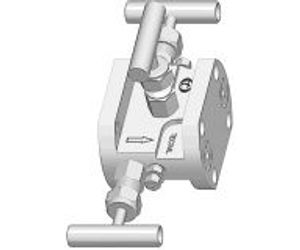

TECVAL - Model MBT-2.3DA -2-Way 3-Valve Transmitter Direct Coupling Manifold

TECVAL MBT-2.3DA manifolds are designed to work with fluids under high pressure and/or high temperature service. Their distribution diagram consists of three valves commanding three lines: high pressure, low pressure and a by-pass line to restart the instrument. The coupling is manufactured according to DIN 19213. Four screw 7/16” UNF and two PTFE joints to assemble the transmitter are supplied.
