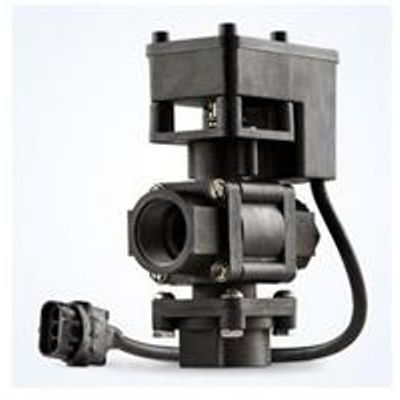

TIR - Model MV.2701 -2-Way and 3-Way Electric Ball Valves
The lightweight Electric Ball Valves give you control over thick and thin viscosities with medium pressure across a high volume flow. Have grittier materials? These work great because they are not easily clogged. Expect quick connection to a variety of plumbing attachments, then go between 2-Way and 3-Way by plugging or unplugging the outlets.
Most popular related searches
- Type: 2 or 3-Way Operating
- Manifold: None
- Sections: Single Valve
- Inlets/Outlets:
- 1" NPT Side Outlets
- 1" NPT Bottom Inlet
- Pipe Plug: 1"
- Maximum Pressure*: 200 PSI (1378 kPa)
- GPM: 0-30 (110 LPM)
- Pressure Drop: 5 PSI at 30 GPM
- STD. Currant Draw: 2.5 AMPs
- CV Rating: 13.4
- Open/Close Time: .8 seconds
- Valve Housing: Glass-Filled Nylon
- Wetted Metal Parts: 303 Stainless Steel
- O-Rings: Viton
- Ball and Shaft Seals: Teflon
- Motor: Totally Enclosed
Protected by Self-Resetting Fuse - Terminals: 12" Wire with 3 Pin Weather Pack Connector
- Repair Kit: KT.2532 - 2700 Series Repair Kit
