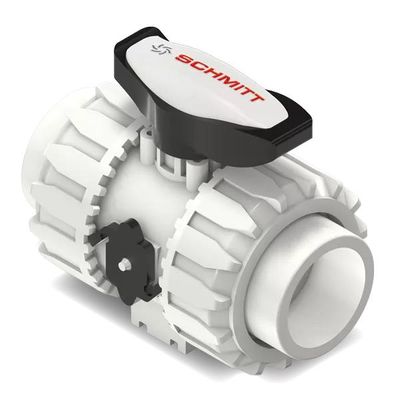

SchmittModel KGH Series -2-Way Ball Valve

SHARE

With the KGH series, SCHMITT offers a 2 way ball valve made of chemical-resistant plastics to complement its pump range, which meets the highest Industrial requirements. Features such as the patented locking device, the two-part ball seat support and a double- sealed spindle also contribute to increase operational safety.

Most popular related searches
Special features of the 2-Way ball valve
  • Ergonomic handle with removable valve adjustment tool
  • Double sealed spindle and double groove connection to the ball for maximum operational safety
  • Reworked ball with very high surface finish for absolute tightness over the entre duration of use
  • Integrated Bracket for easy retrofitting to electric or pneumatic drive
  • Patented locking device to secure the union nut with vibrations of thermal load.
  • Two-part ball seat support for reduced friction and Increased life of the seals.

  • All wet parts made of high-quality, corrosion-resistant plastics (PVDF or PP)
  • Elastomeres available In FKM and EPDM
  • Available with welding socket, welding spigot, threaded connections according to ISO 228-1 or flange connections as standard
  • Equipped with Integrated, injecton-moulded fixings for valve- or pipe fixing
  • Absolute operational safety even under vibrations or thermal loads due to unique locking device
  • Increased service Iife of the seals due to two-part ball seat carrier
  • Extremely high mechanical resistance due to high surface quality, double sealed spindle and double groove connection to the ball

Shut-off and control of acids, alkalis or other corrosive, harmful or toxic liquids.

For example in the following applications:

  • Plating and surface coating
  • Semiconductor technology and solar cell production
  • PCB and electronics manufacturing
  • Wastewater and fresh water treatment
  • Laboratory equipment and medical technology
  • Emission controls and gas scrubbers
  • Battery production and energy storage
  • High-purity applications, demineralized water, ultrapure water
