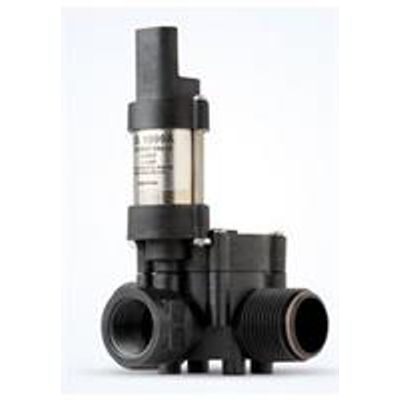

TIR - Model SV.1999A.1V.WP -2-Way Large Solenoid Valves for High Flows
Featuring up to 18 GPM in on/off configuration, our solenoids for high flows use a single host to control whatever segments you break the fluid into. They can handle both fluid and water-soluble chemical mixtures. Each one provides quick component attachment with full air control within the flow.
Most popular related searches
- um Pressure: 175 PSI (1200 kPa)
- GPM: 0-18 (65 LPM)
- Pressure Drop: 5 PSI at 18 GPM
- Std Current Draw: 1.1 AMPs
- CV Rating: 8.0
- Wetted Metal Parts: 304 & 430F Stainless Steel
- Inlets/Outlets: 1" NPT Female Bypass Inlet
1" NPT Male Bypass Outlet
.75" Female Boom Inlet
SV.1999A.1V.WP.C
- TIR E-Chip®: SV.1999A.1V.WP.C
- Current Draw: 1.1 AMPs reduces to .36 AMPs at 1 second
STANDARD VALVE OPTIONS*:
- 24V DC Voltage
- Aflas Diaphragm/Seat Seals
*Options available only upon request
ACCESSORIES:
MOUNTING BRACKETS
- BKT.1988 - Single Valve
- BKT.1989 - Two Valves
- BKT.1990 - Three Valves
REPAIR KITS
- KT.2517 - Viton Repair Kit
- KT.2518 - Aflas Repair Kit
Common Features of our High Flow Large SOlenoid Valves include:
- Voltage: 12-Volt DC
- Valve Housing: Glass-Filled Nylon
- Coil: Epoxy Encapsulated
- Valve: Normally Closed
- Terminals: Weather Pack
- .25" Spade Available
