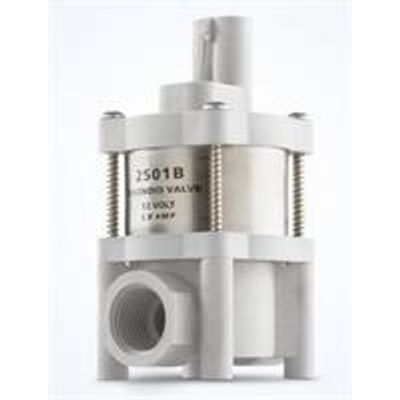

TIR - Model SV.2501B.WP -2-Way Large Solenoid Valves for Low Medium Flows
These Solenoid On/Off and 2-Way Valves give you the power to control and mix harsh chemicals easily and reliably with precision on/off functionality. These valves also feature quick component attachment, the ability to control air, and are ideal for low pressure, low to medium volume flows.
Most popular related searches
- Type: Direct Operating On/Off
- Maximum Pressure: 150 PSI (1034 kPa)
- GPM: 0-6 (22.7 LPM)
- Pressure Drop: 5 PSI at 6 GPM
- Std Current Draw: 2 AMPs
- CV Rating: 2.7
- Inlets/Outlets: .5" NPT Female Inlet
- .5" NPT Female Outlet
- Voltage: 12-Volt DC
- Valve Housing: Glass-Filled Nylon
- Wetted Metal Parts: 430F Stainless Steel
- Coil: Epoxy Encapsulated
- Valve: Normally Closed
- Diaphragm/Seat/Seals: Viton
- Terminals: Weather Pack
- .25" Spade Available
