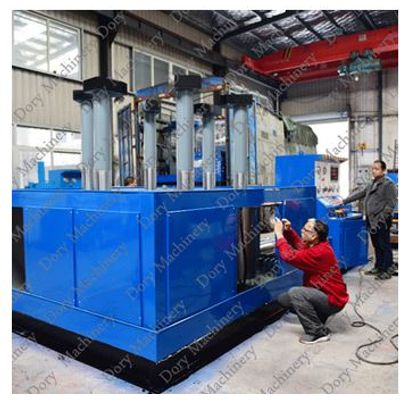

Dory - Model YFJ-D1200 -20``-48`` Butterfly Valve Test Bench
Equiped with Low Pressure Pump/High Pressure Pump Hydraulic Systsem,Electrical Control System.
Most popular related searches
butterfly valve
valve testing
butterfly valve knife
knife gate valve
high-pressure pump
stainless steel tube
data acquisition system
knife gate
butterfly gate valve
gate valve
- Valve Types: Butterfly Valve/Knife Gate/Wafer Check
- Size Range: 20``-48`` DN500-DN1200
- Pressure Range: Class 150-Class300
- Valve End Type: Flanged/Wafer
- Designed to test Butterfly Valve/Wafer CheckValve/Knife Gate Valves
- Size range: 20’’-48’’ DN500-DN1200
- Pressure range: Class 150-Class300 PN16-PN40 ( Pressure to be confirmed as different customers require different pressure , customization services available )
- Hydraulic Clamping system with jaws, by means of clamping flanges with blind flange adaptors ensure the positive seals of the valve flanges.
- Vertical Design
- Stainless steel tubes and pipelines available
- With interlock functions for safety
- Testing fluid by water or air ,water with a corrosion inhibitor, according to international valve testing& Inspection standard like API598 etc
- Recycle water tanks
- Air driven liquid booster pump(Maximator or Haskel)
- Data acquisition system is available, including PLC,Touch screen, Printer,with test graphs & reports.
