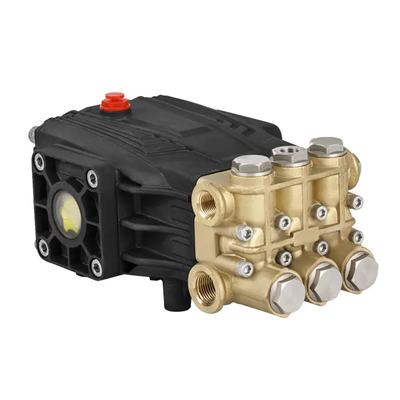

Brilliant - Model JPB-N1120 -200 Bar Ceramic High Pressure Pump Pistion Pump
Triplex plunger pump, also called triplex plunger pump, water wash pump, washer pump car, high pressure washer pump, piston water pump, pressure pump,it is a cold water spray plunger pump with a brass pump manifold. It is best for car washing, truck washing, floor washing and other applications.
Most popular related searches
high-pressure pump
triplex plunger pump
high-pressure washer pump
high-pressure plunger pump
plunger pump
car wash truck
high-pressure washer
pressure washer pump
water pump
high-pressure water pump
- Manifold: Forged Brass: Strength and no porosity equals long life. Higher hydrostatic pressures, safety, performance
- Checking valve: Stainless steel poppet valve and spring ,brass valve seat,easy to mantain
- Crankcase: Foundry& oxidation technology,biggish heat sink with good heat dissipation
- Plunger:
- Solid ceramic plunger
- SST limit bolt/long service life
- Connecting rod: Aluminum alloy material
- High load intensity,long service life
- Seals: U-sgaoed Buna-N maerial,increased pump performance and seal
- Max GPM: 2.9
- Max L/Min: 11
- Max PSI: 2900
- MaxBar: 200
- Power KW: 4
- Plunger Dia mm: 18
- Stroke mm: 10
- Inlet: 1/2" F
- Outlet: 3/8" F
- Max Temp: 50?/122?
- RPM: 1450
- Shaft Size: 24mm
- Shaft Version: N
- Shaft Type: Solid
- Shipping Weight(kg): 7
- Oil Type: SAE 15W/40
