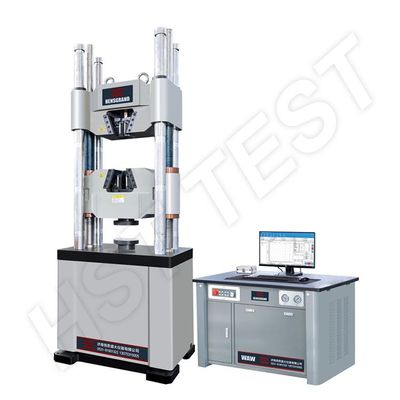

HST Group - Model WAW-2000D -2000kN 200Ton Computer Control Electro-hydraulic Servo Universal Testing Machine
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
Most popular related searches
universal testing machine
hydraulic testing
concrete testing
tensile testing system
compression testing
tensile test
tensile testing
metal test
metals testing
ASTM standard
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
- Max. Load(kN) : 2000
- Load accuracy : Class 0.5
- Measuring range : 2%~100%
- Displacement Resolution : 0.01mm
- Load resolution : Capacity/500,000WAW-2000D 2000kN 200Ton Computer Control Electro-hydraulic Servo Universal Testing Machine
- Tensile space(mm) : 850
- Compression space(mm) : 850
- Distance berween two columns : 800
- Piston stroke(mm) : 250
- Clamping Method : Hydraulic Automatic Clamp
- Power Supply : 3-phase, AC380V, 50Hz (Can Be Customized)
