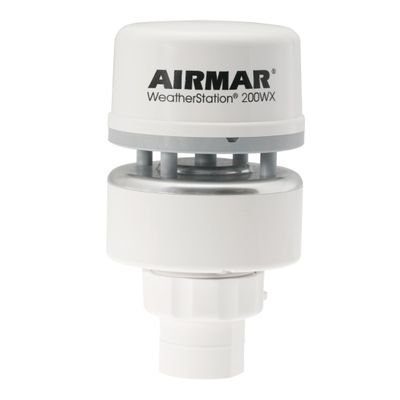

AIRMAR - 200WX WeatherStation® Instrument
Land-based, Mobile, Standalone.The WeatherStation 200WX is the best choice for mobile, land-based, weather-monitoring applications. Sensor-rich with a rugged, compact, IPX6-rated housing, the 200WX can be used on moving platforms such as TV-news and military vehicles.
Knowing the theoretical wind speed and direction is often mission-critical. The 200WX calculates theoretical wind speed and direction based upon the apparent wind (the wind you would feel on your hand while moving), speed of the vehicle, and vehicle heading. Its internal 10 Hz GPS and three-axis electronic compass provide the heading, position, speed-over-ground, and course-over-ground functionality necessary for theoretical wind-data processing on a moving vehicle.
The 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data. The 200WX maintains dynamic compass performance in hilly and mountainous terrain—common in military situations.
Ultrasonic measurement of apparent and theoretical wind speed and direction
Barometric pressure
Air and wind chill temperature
Relative humidity (field serviceable option)
Calculated dew point and heat index
GPS position, speed over ground, and course over ground
Three-axis, solid-state compass with dynamic stabilization
Three-axis rate gyro supplies rate-of–turn data
Three-axis accelerometer for best-in-class pitch and roll information
Housing IPX6 rated for water-ingress protection
Data output via a single cable (various lengths available)NMEA 0183/ASCII serial data protocol over RS-232 interface
NMEA 2000 protocol over CAN
Relative humidity moduleEnables dew-point and heat-index calculations
Field serviceable
WeatherStation housing rated IPX4
Weight: 300 g (0.7 lb.)
Wind Speed:
Range: 0 to 40 m/s (0 to 89 MPH)
Accuracy: 5% at 10 m/s at 4 angles
Resolution: 0.1 m/s
Calculations: User configurable damping
Wind Direction:
Range: 0 to 359.9°
Accuracy: ±3° at 10 m/s
Resolution: 0.1°
Calculations: User configurable damping
Air Temperature:
Range: -40 to 80°C (-40 to 176°F)
Accuracy: ±1.1°C at 20°C
Resolution: 0.1°C
Barometric Pressure
Range: 300 to 1100 hPa
Accuracy: ±0.5 hPa at 25°C (or better)
Resolution: 0.1 hPa
Three-axis Compass:
Range: 0 to 359.9°
Accuracy:
1° static heading accuracy
2° dynamic heading accuracy
Resolution: 0.1°
Pitch and Roll:
Measurement Type: MEMS
Range: 50°
Accuracy: ±1° in range of ±30°
Resolution: 0.1°
GPS Position Accuracy: 3 m (10') CEP
Optional Relative Humidity:
Range: 0 to 100% RH
Accuracy: ±5% RH at 0 to 90% RH at 20°C
Resolution: 0.1% RH
Operating Temperature Range: -25 to 55°C (-13 to 131°F)
Power:
Supply Voltage: 9 to 40 VDC
Supply Current: <75 mA (<0.9 W) at 12 VDC
NMEA 2000® Load Equivalency Number (LEN): 2
Communications:
Available Interface: Serial RS-232, Serial RS-422, CAN
Available Protocol: Comma delimited ASCII, NMEA 0183, NMEA 2000
Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
Mounting-thread Size on Base: Standard 1"-14 UNS (3/4" NPT optional)
Certifications and Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Note: Cables sold separately
