Mario Cirino Pomicino SpA (MCP)

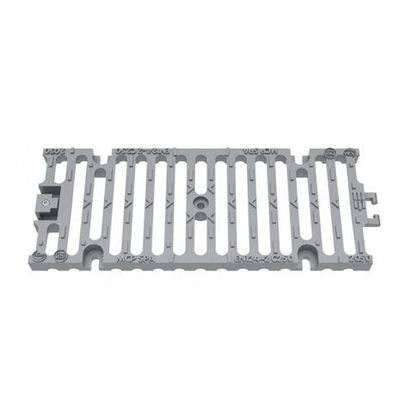

Mario Cirino Pomicino - Model Utrillo -200x500mm Ductile Iron Grates Frame
Running grate in ductile cast iron GJS-500-7 – EN 1563 produced, in accordance with the latest edition of the UNI EN 124 standard – drive-over classes C250/D400, by an ISO 9001:2015 certified company and consisting of:
Most popular related searches
- EXTERNAL DIMENSIONS mm.: 200×500
- HEIGHT mm.: 30
- DRAIN dm2: 4.45
- WEIGHT Kg.: 6.50
- NOTE: COMPLIANT WITH DPR 503/96
Pair of side members equipped with:
- suitable external perimeter fin with holes/slots useful for fixing with tie rods;
- threaded holes for locking the grate using bolts.
- Rectangular/square shaped grate equipped with:
- parallel discharge slots arranged in one or more rows;
- slots for locking to the side members, using recessed hexagonal head bolts, placed on two sides of the grate;
- n. 2 “L” shaped appendages, on one side, useful for hooking up to the preceding grate equipped with an appropriately shaped and recessed seat;
- shaped and recessed seat on the opposite side, provided with a closing plate bolted to the grid, useful for housing the appendages of the following unit;
- identifying detail of the external dimensions of the grid expressed in cm;
- anti-slip reliefs.
- All grids and side members must show the reference standard, the drive-over class, the manufacturer`s brand in code and the production batch date.
- Weight: 6.5 kg
- Class: C250
- Lid Shape: Rectangular
- Characteristics Bolted , Compliant with DPR 503/96
- External dimensions in mm.: 200×500
