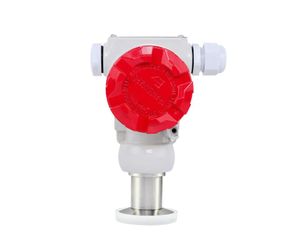

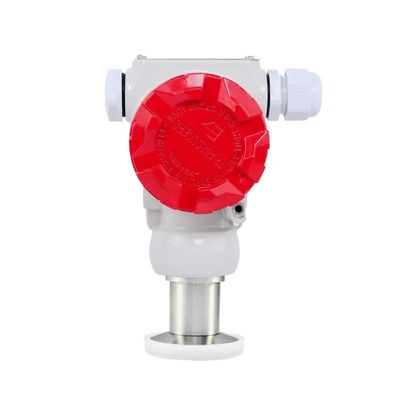

Meacon - Model MIK-P450 -2088 Membrane pressure transmitter
MIK-P450 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. Features Range:-0.1~ 0 ~ 40MPaResolution:0.5% F.SOutput signal: 4~20mA; 1~5V; 0~10V; 0~5V; RS485Installation: ClampPower supply:24VDC (9 ~ 36V)Most popular related searches
pressure transmitter
industrial pressure transmitter
piezoresistive pressure sensor
pressure sensor
pressure monitoring
gas monitoring
Introduction
SUP-P400 Digital Smart LED/LCD display with shell Industrial Pressure Transmitter
Product
Pressure transmitter
Model
SUP-P450
Measure range
-0.1~0 to 0 ~ 40MPa
Indication resolution
0.5%
Ambient temperature
-10 ~ 85 ℃
Output signal
4-20mA analog output
Pressure type
Gauge pressure; Absolute pressure
Measure medium
Liquid; Gas; Oil etc
Pressure overload
150%FS
Power
DC24
