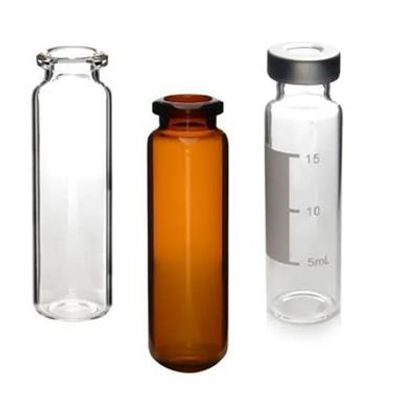

Aijiren - 20mm Crimp Headspace Vial
Headspace vials are a kind of laboratory vials for top space analysis, with the features of high-temperature resistance and corrosion resistance. A headspace vial is used in the process of top – gas chromatography. When detecting volatile or semi-volatile mixtures with high boiling points, we need to heat them to vaporize them at the top. In this process, since the liquid samples are at the bottom, the material in the top gas can be measured without touching the liquid in the sample vial. The material of Headspace Vials is low extractable Borosilicate glass with low expansion rate, high-temperature resistance, high strength, high hardness, high light transmittance and high chemical stability. Headspace Vials suitable for headspace analysis of volatile solids and gases.
- Volume: 20ml
- Dimension: 22.5*75mm
- Color: Clear & Amber
- Neck: Crimp
- Neck Diameter: 20mm
- Bottom: Flat Bottom or Round Bottom
- Material: 1st hydrolytic class glass
- Cap: 20mm Aluminum Cap
Aijiren Tech headspace vials are manufactured to provide uniform glass thickness which insures even heat distribution for consistent sampling reliability. All Aijiren Tech headspace vials meet or exceed OEM instrument manufacturer’s specifications. Aijiren Tech vials are available in 6ml, 10ml, 20ml versions with Screw and Crimp type.
- 20mm crimp headspace vial is widely used in Headspace and GC, GCMS application.
- 20mm Aluminum Crimp Cap Seals and Vials ensure that a proper seal is made for this demanding application
- Vials are manufactured of borosilicate glass and include a write-in patch for sample identification.
- Caps are made of high quality laquered aluminum, 0.010" thick
- Cap colors are available in silver only
- Many septa options are available and use only the highest quality materials to ensure proper function and can be pre-slit to ease needle penetration
- 0.120" Natural Silicone with 0.005" Natural PTFE. Designed for highly demanding volatile analyses (Headspace) up to a maximum of 200C
- High quality silicone compounds are used to ensure proper re-sealing and reduced chances of coring
- Septa is pre-conditioned to ensure low bleed
- Absence of pigments eliminates additional sources of contamination
- Aijiren Tech crimp top headspace vials are available in a flat or round bottom style, with clear or amber glass.
