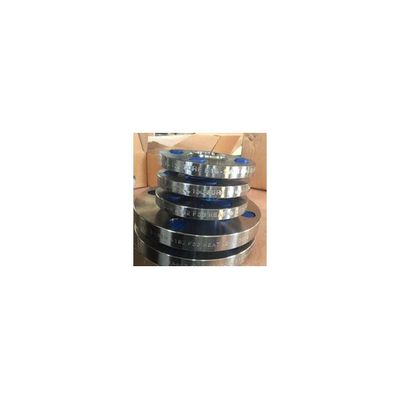

Manifold - Model ASTM A790 S32205 -2205 Duplex Stainless Steel Flanges

Duplex Steel 2205 Flanges also demonstrates good mechanical properties such as fatigue strength, as well as excellent resistance to stress corrosion cracking, pitting, erosion, crevice, and general corrosion in severe environments.

Typical applications of the  Asme Sa790 S32205 Welding Neck Flange include their use in the following fields -

Duplex 2205 Blind Raised Face Flange is used in the processing of Chemical, transport and storage – tanks, piping, pressure vessels, and heat exchangers. The Astm A182 F51 Duplex Steel Blrf Flange finds application in the Oil and gas industry, where they are used in exploration and processing equipment such as  – tubing, piping, and heat exchangers. Since the Astm A182 Gr F51 Uns S31803 Flange has good resistance to a wide range of chemicals, these flanges are used in the Marine and other high chloride environments. Effluent scrubbing systems, Equipment’s in the Pulp and paper industry are mostly exposed to acid. Because the Saf 2205 Slip On Flanges has good resistance to acidic conditions, they are used in equipment’s such as – digesters, bleaching equipment, as well as stock-handling systems. Other areas that use the 2205 Material include - Food processing equipment, Biofuels plants  and Cargo tanks for ships and trucks

Due to a high chromium, molybdenum, and nitrogen content, in the A790 S32205, these Duplex 2205 Flanges demonstrates superior corrosion resistant properties as compared to other austentic stainless steel grades such as 316 and 316L in quite a few environments. The addition of elements such as Chromium, molybdenum, and nitrogen content in the Alloy 2205 Sorf Flange  also provides a high resistance to pitting as well as crevice corrosion. These elements also aid in making the Saf 2205 Blind Flange resistant to even  oxidizing and acidic solutions.

Uns S32205 Pipe Flange is resistant to chloride stress related corrosion cracking. Especially when the Alloy 2205 Blrf Flange is exposed to temperatures of up to about 302°F or 150°C. The presence of ferrite in the Saf 2205 Sorf ensures a good performance even in caustic environments. Heat resistance of the A790 S32205 Pipe Flange is similar to other duplex stainless steel grades. Flanges produced from duplex 2205 has good resistance  to oxidation at high or elevated temperatures. Even though the Astm A182 Uns S31803 Material is subject to embrittlement on exposure to temperatures that are above 572°F  or 300°C. This holds true when duplex 2207 is  exposed for short periods of time; Hence, use of Duplex 2205 stainless steel flanges is not recommended at temperatures above 572°F  or 300°C.

The Astm A790 S32205 Pipe Flange Supplier In India note that this grade of duplex stainless steels are known to possess good weldable properties. Although this stainless steel has good weldable properties, the 2205 Duplex Stainless Steel Flanges  is generally not welded without the use of filler metal. Welding this alloy without a filler metal may result in excessive ferrite. The heat treatment done on the Astm A182 Uns S31803 is by performing  annealing at a temperature range of 1868 to 2012°F. Since, duplex grade of stainless steel cannot be hardened by heat treatment, they could be work hardened. A special consideration is required to compensate for a higher coefficient of thermal expansion in order to avoid warping and distortion of these 2205 Duplex Flanges.

• Specifications: Duplex 2205
• Duplex 2205 Flanges Standards: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
• ASME B16.5 Duplex 2205 Flange size range: 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
• Duplex 2205 Flange Standard DIN: 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
• Duplex 2205 Flange Standard ANSI: Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
• Duplex 2205 Flange Standard UNI: 6Bar 10Bar 16Bar 25Bar 40Bar
• Duplex 2205 Flange Standard EN: 6Bar 10Bar 16Bar 25Bar 40Bar
• Duplex 2205 Flange Standard JIS: 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
• Main Types: Forged / Threaded / Screwed / Plate
• Flange supporting material: Gasket, Ring Joint, Flange Bolts
• Most common types of Duplex 2205 Flanges:
• Socket Weld Ring Flange (SWRF), Duplex 2205
• Threaded Ring Flange, Duplex 2205
• Blind Ring Flange (BLRF), Duplex 2205
• Weld Neck Ring Flange (WNRF), Duplex 2205
• Slip-On Ring Flange (SORF), Duplex 2205
• Ring Type Joint Flange (RTJF), Duplex 2205
• Lap Joint Ring Flange (LJRF), Duplex 2205
• Connect Type/ Flange Face Type: Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
• Duplex 2205 Pipe Flanges Test Certificates: EN 10204/3.1B
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
• Production technique:
• Forged, Heat treated and machined
• Special design:
• As per your drawing
• AS, ANSI, BS, DIN and JIS
• 15 NB (1/2") to 200 NB (8")
• Equal and Reducing Configurations
• Duplex 2205 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
• Specialized manufacturer of:
• DIN 2566 en 1092 1
• Pn16 Flange
• DIN 2566 pn16
• Rtj Flange
• Duplex 2205 Sorf Flange
• Duplex 2205 Table Flanges
• DIN 2566 pn10
• Duplex 2205 Large Diameter Flange
• Duplex 2205 Threaded Flanges
• Duplex 2205 Blind Flanges
• ASTM A182 2205 Plate Flange
• Duplex 2205 Weld Neck Flanges
• Duplex 2205 Loose Flanges
• ASTM A182 Grade 2205 Orifice Flange
• Duplex 2205 Slip-On Flanges
• Duplex SS 2205 Lap Joint Flange
• Duplex 2205 Socketweld Flanges
• Duplex 2205 AS 4087 Water Flanges
• Test: Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector
• Equipment: Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
• Origin: West Europe /Indian / USA / Japan / Korean
• Duplex 2205 2205 Flanges Standard:
• ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
• BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
• AS 2129: Table D; Table E; Table H
• B.S: BS4504 , BS3293, BS1560, BS10
• ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
• ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
• American standard (ANSI)
• ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
• British standard (BS)
• German (DIN)
• Any other specilised flanges
• The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
• DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
• Key markets and industries for Duplex 2205 Flanges:
• Nuclear power (mostly seamless).
• Heavy oil refineries.
• Bitumen upgraders.
• Petrochemicals and acids.
• Export to: Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc
• Duplex 2205 Flanges Application:
• To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
