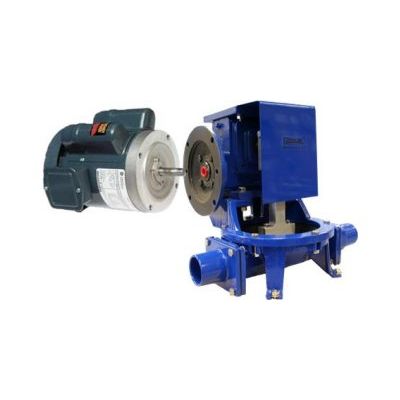

Guzzler - Model GE-2602A / GE-2602B -220VAC / 50Hz Motorized 2600 Pump
Available in either aluminum (GE-2602A) or bronze (GE-2602B). 220VAC / 50Hz motor with optional wiring configuration for 115VAC / 60 Hz mode. 5.8 gpm - 19.0 gpm. Accommodates 1-1/4" to 2" hose. Available in either aluminum (GE-2602A) or non-sparking bronze (GE-2602B). Previously referred to as the "2800" pump.
Most popular related searches
epoxy coating
stainless steel plate magnet
control valve
aluminum bronze coating
aluminum motor
brass valve
- 220VAC / 50Hz motor with optional wiring configuration for 115VAC / 60 Hz mode
- 5.8 gpm - 19.0 gpm
- Accommodates 1-1/4" to 2" hose
- Available in either aluminum (GE-2602A) or non-sparking bronze (GE-2602B)
- Previously referred to as the "2800" pump
- Max Pressure Range: 7 - 13 psi / 0.48 - 0.90 bar
- Lift/Head Range: 16.0 - 20.0 ft / 4.9 - 6.1 m
- Capacity Range: 5.8 - 19.0 gpm / 21.9 - 71.9 lpm
- Volume per stroke: 0.80 qt / 0.76 l
- Max Service Temp: 190° F / 88° C
- Speed Control: None
- Valves: Flapper (Buna-N)
- Diaphragm: Buna-N 3-Ply
- Clevis Button Assembly: Stainless Steel
- Motor Mounting Plate: Motor Mounting Plate
- Inlet Hose Connection: 2" Smooth
- Outlet Hose Connection: 2" Smooth
- Motor Options: 220VAC, rpm: 57, torq: 348 in-lbs | psi: 11, head (ft): 25
- Pre-Pak Accessories: Not selected
- Body & Ports * Epoxy-coated Aluminum (Blue), Epoxy-coated Bronze (Bronze)
- Clamp Ring Aluminum or Bronze Motor Mounting Plate
- Valves * Buna-N Flapper w/molded steel reinforcement plate
- Diaphragm * Buna-N Double Sided
- Clevis/Button Assembly * Stainless Steel
- Motors Accommodates NEMA 56-C motor; other models equipped with 115 VAC, 12 VDC and 24 VDC motors
