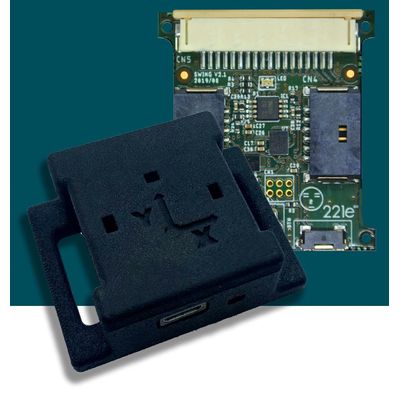

221e - Model Mitch -Research Sensor Platform
A Premium System That Won’t Break Your Budget; Are you tired of struggling with hardware issues and with synchronization of the IMU and Force Sensing Resistors (FSR)? These were the challenges we had in mind when we created Mitch. With perfectly synced IMU and FSR at a fraction of the cost, Mitch is ideal for the Scientific Research and Clinical Trials.
Sensors
3-axis Accelerometer / 3-axis Gyroscope / 3-axis Magnetometer /Optional Add-on Sensors
Processing
ARM Cortex-M4F Processor / 256 KB Flash Memory / 64 KB SRAM
Connectivity
Bluetooth Low Energy 4.1 / Micro USB 2.0 / 2x Digital I/O port / Analog port / I2C
Power
Rechargeable 155mAh Battery / Micro USB Charging
Software
MPE™ Motion Processing Engine (optional) / NeuraSense™ Sensor Fusion AI (optional) / Graphical User Interface
Add-on
YETI – Pressure Sensor Membrane
Mitch is the sensor platform of choice for top universities and leading research centers. With Mitch, you’ll be able to access the raw data and benefit from plenty of connectivity options and a variety of add-ons.
In terms of software, Mitch has been optimized with the MPE™ Motion Processing Engine and NeuraSense™ Sensor Fusion AI to provide exceptional accuracy and consistent results.
Maximize Performance
Minimize Cost
Get a high-performance wireless research platform and a variety of compatible sensor add-ons at a fraction of the cost
Gain
Perfectly-synced Data
The Mitch IMU and FSR are in perfect sync by design. The same applies to interfacing with external instrumentation such as optical motion capture systems
Opt for a
Tried-and-Tested Platform
Mitch has been used in a variety of clinical studies and scientific publications by world-leading research centers
Benefit From an
Open SW Architecture
Access raw sensor data and use the included SDK for interoperability with higher-level software
Mitch can measure acceleration, angular rates and magnetic fields. With the optional add-ons, it can also measure foot/hand pressure points, distance, proximity, light, heart and pulse oximetry.
Thanks to its automatic logging feature and low power consumption Mitch can be used to record data in the field for days on end.
This can be useful, for example, in wearable devices that perform 24/7 remote patient monitoring during Clinical Trials.
- MOTION CAPTURE
- HAND TRACKING
- BIOMECHANICS RESEARCH
- ENTERTAINEMENT PERFORMING ARTS
- FITNESS & SPORT
- GAIT ANALYSIS
- GAMING AND VR
- PRESSURE MAPPING
