Fisher Industries - 225 Overland Conveyor

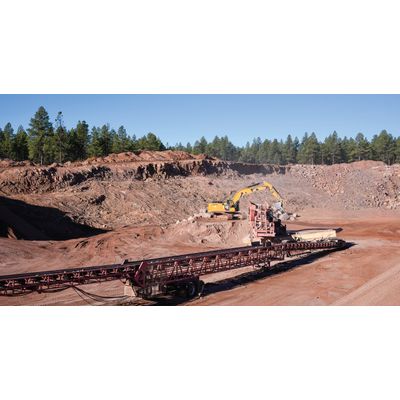

Portable and rugged, the Fisher Industries 225` Overland conveyor is an efficient and effective way for moving aggregate products and eliminating potential material breakdown from multiple transfer points. The Overland reduces mobilization time and costs, eliminating the need for multiple conveyors. It adapts to vertical curves in the terrain with the ability to pivot at connection points. The 225` Overland Conveyor has been designed with the mobile contractor in mind. It can easily be transported, set up, and torn down. It operates 1,000 tons/hour at 450 ft./minute. The 225` Overland will help move material on all your tough jobs.
Most popular related searches
- Heavy-duty truss style design
- Designed for 1,000TPH @ 390 FPM
- Dual 25HP 1800RPM electric motors with v-belt drive and Dodge® speed reducers
- 20” Diameter lagged drum head pulley
- 14” Diameter steel wing tail pulley
- 12” Diameter lagged bend pulleys
- Ratchet style gravity take-up assembly
- Screw type take-up assembly on tail end
- 5” Diameter CEMA® “C” idlers and rubber disc return rollers
- 3-Ply ¼” x 1/16” conveyor belt
- Tandem 10’ 22,500# hub piloted axles with brakes
- Tandem mechanical suspension
- 285/75R 24.5 low profile tires
- Flexco “Rockline®” belt scrapper
- 5th wheel = 10,000# Tandem axles = 31,000#
- 10’ x 13’-11” x 82’-4”
