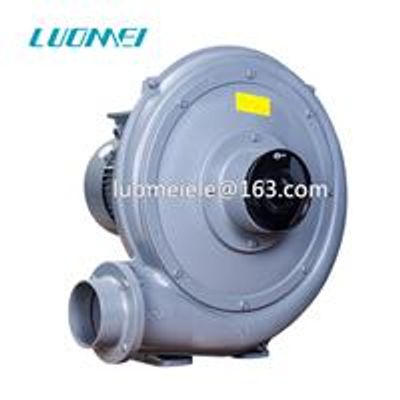

LUOMEI - Model CX-125A -2.2KW 3HP Middle Pressure Centrifugal Air Blower Fan

Medium pressure centrifugal fan with different airflow and pressure, aluminum alloy material. oil free, 24 hours working every day.

Most popular related searches

Model : CX-125A

1. 2.2KW

2.Voltage: 220/380V three phase

3.Frequency: 50/60 Hz

4. Max airflow:32/37 m3/min

5. Max pressure:2.4/3.7 kpa

6. Inlet/Outlet diameter: 252/125mm

7.Net weight: 38KG

8. Dimension: 570*560*605mm

9: Material: aluminum alloy

10: Customize: inlet/outlet diameter, voltage,outlet forward,

We still have many other models,welcome to contact us (Email: luomeiele@163.com)

Techinal details
