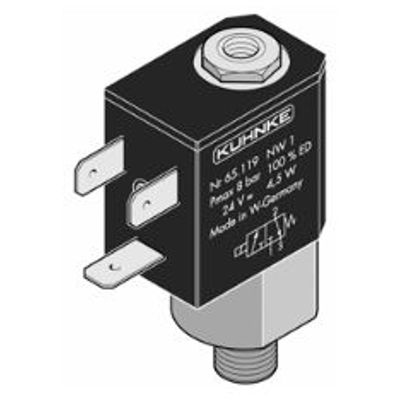

H-Kuhnke - Model 65 Series -22mm Brass 2/3 Way Miniature Solenoid Valve
The Series 65 solenoid valve is available for in-line, direct or manifold mounting. Accessories include connecting plugs, sub-bases and manifolds. All standard valves feature a solid brass housing, buna seals, encapsulated coils and are mountable in any position.
Types: Standard valves are available in 3 mounting configurations. In-line (body ported) valves are mounted using (2) M3 threaded holes on the underside of the base. Manifold mounted valves can be used with Kuhnke accessories or can be mounted on custom manifolds or equipment. A direct mounted valve is available for mounting in 1/8 ports on cylinders or for piloting larger valves.
In addition to general purpose use, Series 65 valves are designed for the special requirements of medical, dental and laboratory equipment. Custom designs available.
