TvbTech - Model 3199F-23mm -23mm Sewer Drain Pipe Inspection Camera System with 20m/66ft ~ 40m/130ft Cable

What’s included?

• 1 x 23mm Camera head
• 1 x 20/30/40m cable wheel
• 1 x battery pack
• 1 x remote control
• 1 x screw driver
• 1 x power adapter
• 1 x car charger

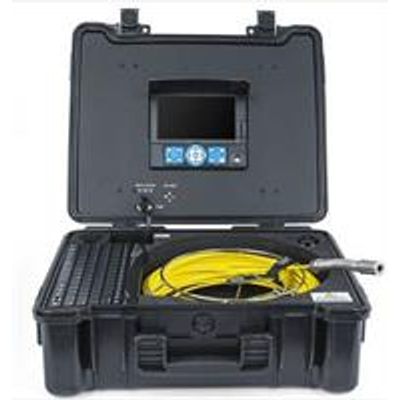

• 1 x waterproof suit case with monitor mounted

Packing details:

• Each unit in a professional tool case
• 1 unit in one carton
• Carton G.W.: 11.2-12.1kg (slight different for 20m, 30m and 40m unit)
• Carton Measurement: 55 x 25x 49cm

• 1/3" Sony CCD camera, 120°wide vision angle, 752H * 582V pixels
• Camera Size Φ23mm×45mm（head only）
• Sapphire glass lens cover, 12 white LEDs
• Diameter of camera:23mm, Focus Distance 20cm (approx)
• Water proof level, 20m underwater (camera fix on cable)
• Push cable dia. 5.2mm
• 7” LCD color monitor
• One push record button
• LED brightness control buttons
• Video image rotate button
• Support SD Card slot to store still pictures or videos
• With microphone for audio recording
• Rechargeable battery lasts up to 8 hours
• On-Screen date and time
• 20/30/40m fiberglass push rod
• Rotatable cable reel mounted in case for convenient operation
• Waterproof ABS suitcase with all parts included

Optional features/parts:

• On-Screen meter counter
• Camera head with built-in 512hz sonde
• Self-leveling feature (same size)
• A wirelese keyboard to insert texts on screen
• Long spring camera head for better flexibility while passing through 90 degree bends
• 38mm camera head for using in larger pipes

• Camera Head
• Camera Size: Φ23mm×45mm
• Camera Total Length: 120mm（short spring camera head）/250mm（long spring camera head）
• Sensor: 1/3" Sony, 480 TV-Line
• Pixel: 752H * 582V
• View Angle: 120°
• Transmitter: 512hz built-in(selectable)
• Focus Distance: 20cm (approx)
• Depth-of-Field: 100cm(approx)
• Front Lens: Sapphire glass
• Water-Proof: 20m Under Water(Camera fix on Cable)
• Shell Material: #304 stainless steel
• Lighting: Built-in 12×LED(White)
• Operating Temperature: -10~50℃/+14~+122℉
• Storage Temperature: -20~60℃/+4~+140℉
