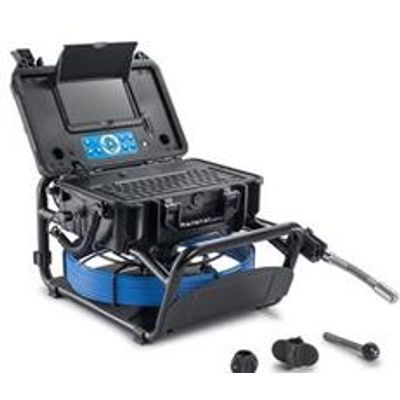

TvbTech - Model 3499F -23mm Video Drain Pipe Inspection Camera with 20m/66ft ~ 40m/130ft Cable

What’s included?

• 1 x 23mm Camera head
• 1 x 20/30/40m cable wheel
• 1 x battery pack
• 1 x remote control
• 1 x screw driver
• 1 x power adapter
• 1 x car charger
• 1 x waterproof suit case with monitor mounted

Packing details:

• Each unit in a professional tool case
• 1 unit in one carton
• Carton G.W.: 16-17.1kg (slight different for 20m, 30m and 40m unit)
• Carton Measurement: 55 x 44x 35cm

Key features of this new pipe inspection camera:

1. Unique, professional and compact design.
2. The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
3. Easy to carry; convenient transportation.
4. Comes with a smart braking system.
5.  The keyboard is very easy to operate, like a laptop.

All-in-One Video pipe inspection camera with 20/30/40m fiberglass cable and 7" monitor with DVR feature

• 1/3 inch Sony CCD camera, 120° wide vision angle
• Stainless steel camera head, IP68 waterproof level
• Sapphire glass lens cover, 12 high light white LEDs
• Diameter of camera: 23 mm
• Two plastic guides for camera head, Φ46mm & 80mm
• 7” LCD color monitor, with image rotate button
• SD Card slot to store still pictures or videos
• One push record button
• LED brightness control buttons
• With microphone for local audio recording
• Rechargeable battery lasts up to 6 hours
• On-Screen date and time
• 20, 30 or 40m fiberglass φ5.2mm push rod
• Rotatable cable reel mounted in case for convenient operation
• Ability to go through 90°bends in Φ45mm pipes
• With smart braking system
• With on-screen distance counter
• With Keyboard for text input (English)
• Whole system waterproof (box closed)

Optional features/parts:

• Camera head with built-in 512hz sonde
• Self-leveling feature (same size)
• Long spring camera head for better flexibility while passing through 90 degree bends
• 38mm camera head for using in larger pipes

• For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
• For Maintenance of Plumbing and Wiring behind walls

• Camera Head
• Camera Size: Φ23mm×45mm
• Camera Total Length: 120mm（short spring camera head）/250mm（long spring camera head）
• Sensor: 1/3" Sony, 480 TV-Line
• Pixel: 752H * 582V
• View Angle: 120°
• Transmitter: 512hz built-in(selectable)
• Focus Distance: 20cm (approx)
• Depth-of-Field: 100cm(approx)
• Front Lens: Sapphire glass
• Water-Proof: 20m Under Water(Camera fix on Cable)
• Shell Material: #304 stainless steel
• Lighting: Built-in 12×LED(White)
• Operating Temperature: -10~50℃/+14~+122℉
• Storage Temperature: -20~60℃/+4~+140℉
