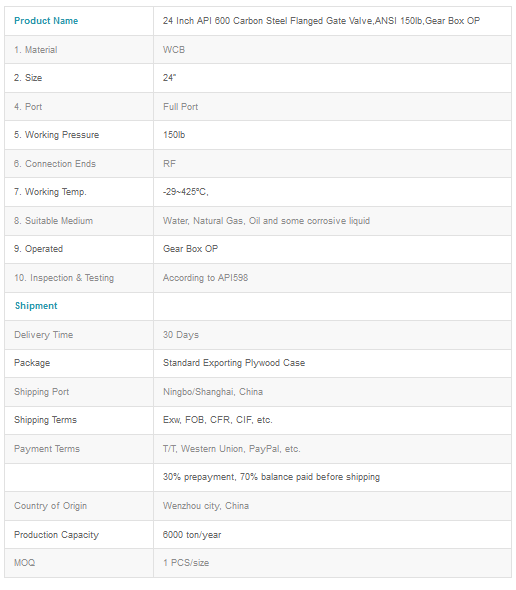

STV - Model Z541H-150LB-24 -24 Inch API 600 Carbon Steel Flanged Gate Valve
24 Inch API 600 Carbon Steel Flanged Gate Valve,ANSI 150lb, Gear Box OP. 24 Inch API 600 Carbon Steel Flanged Gate Valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar. The gate faces can form a wedge shape or they can be parallel. Typical gate valves should never be used for regulating flow, unless they are specifically designed for that purpose. On opening the gate valve, the flow path is enlarged in a highly nonlinear manner with respect to percent of opening.
STV Valve Technology Group Co., Ltd is a professional leader China Class150 24inch Carbon Steel Flange Gate Valve,ASTM A216 150LB WCB Gate valve to API 600,astm a216 wcb flanged gate valve,Cast carbon steel wedge gate valve,Flexible Wedge Cast Steel Gate Valve,API 600 Cast Steel Gate Valves,China Flanged Bolted Bonnet Gate Valve Manufacturer with high quality and competitive price.
Body Materials:
- Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim (Disc/Stem):
- Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel
- Design: ASME 16.34/ API 6D/ API 600/ BS 1414
- Face to Face: ASME B16.10
- End Flange: ASME B16.5, ASME B16.47
- BW End: ASME B16.25
- Test: API 598/ API 6D/ BS 6755
- Special: NACE MR0175
- OS & Y, Rising stem
- Bolted Bonnet with spiralwould gasket
- Flexible Wedge
- Backseat WeldDeposited
- Threaded or welded seat ring
- Renewable seat rings
- Extended Bonnet for Cryogenic Service
- Flanged or butt welded ends.
- By Pass on Request
- Locking Device Optional
- Valve size: 2″ ~ 48″ (DN50DN1200)
- Pressure: ANSI Class 150~2500(PN16PN420)
- 196ºC~ 500ºC
