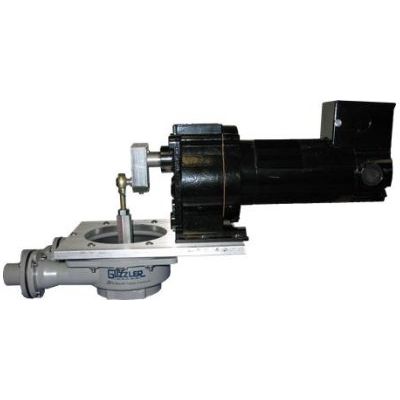

Guzzler - Model GE-0454D -24 VDC Motorized 450 Pump
Same-side inlet and outlet ports.
Most popular related searches
- 24 VDC permanent magnet motors with speeds from 20 to 120 rpm
- 2.2 gpm - 13.2 gpm
- Same-side ports for close-fitting installations
- Accommodates 1/2" - 1-1/4" hose
- Pump body and flanges made of durable, lightweight Delrin plastic
- Max Pressure Range: 4 - 15 psi / 0.28 - 1.03 bar
- Lift/Head Range: 9.0 - 20.0 ft / 2.7 - 6.1 m
- Capacity Range: 2.2 - 13.2 gpm / 8.3 - 50.0 lpm
- Volume per stroke: 0.44 qt / 0.42 l
- Max Service Temp: 150° F / 66° C
- Speed Control: None
- Valves: Duckbill (Buna-N)
- Diaphragm: Buna-N (Nitrile)
- Clevis Button Assembly: SS Washer & Aluminum Clevis
- Clamp Ring: Motor Mounting Plate
- Inlet Hose Connection: 1" Smooth
- Outlet Hose Connection: 1" Smooth
- Motor Options: 24VDC, rpm: 64, torq: 113 in-lbs | psi: 8, head (ft): 18
- Pre-Pak Accessories: Not selected
- Body & Ports * Delrin / Gray
- Clamp Ring Aluminum Motor Mounting Plate
- Valves * Flapper, Duckbill, Umbrella
- Diaphragm * Buna-N, Buna-N Double Sided, Neoprene, Viton, EPDM, Silicone
- Clevis/Button Assembly * SS Washer + Aluminum Clevis
- Motor 24 VDC 1/8 HP
