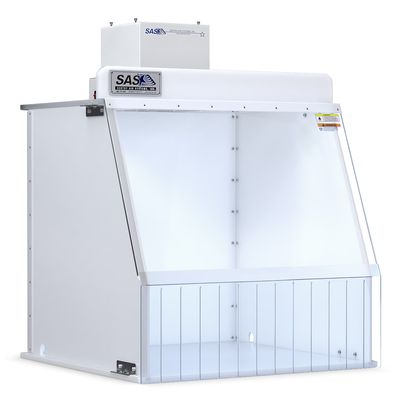

Sentry Air Systems - Model SS-224-DCH -24" Wide Ductless Fume Hood
The 24” Wide Ductless Fume Hood helps to protect the operator and environment from hazardous fumes or particulate generated from applications performed within the hood. Its small structure makes it a great fume extraction solution and addition to a lab or room that has limited space or requires only a small containment area. This lightweight hood provides optimal fume control for field-testing applications because of its ability to be easily transported and its reliable operation. Also as an option, this system can include a removable spill tray for chemical spills.Most popular related searches
ductless fume hood
fume hood
dust control filter
fume extraction system
spill tray
carbon filter
HEPA filter
epoxy coating
fume control
acid gas
- Chemical fumes
- pharmaceutical compounding
- soldering applications
- dust removal
- biological applications
- variety of applications requiring fume and dust removal.
- Includes: clear anti-static vinyl curtains, velometer, and LED light
- Optional: variable speed controller (115V only), hour counter, and spill tray
- Standard Sizes: 12”, 18”, 24”, 30”, 40”, 50”, 60”, and 70” (custom sizes available)
- Quiet operation
- Long filter life
- Simple, quick “no tool” filter change
- Portable and lightweight
- Reliable, low maintenance operation
- Hood Dimensions (D x W x H)
- Outer: 24” x 26” x 25”
- Interior: 23.5” x 24” x 24”
- Access Area: 8” x 24”
- Hood Material
- Sides: 0.25” white acrylic
- Base: 0.5” white high density polyethylene
- Top: 0.5” clear polycarbonate
- Front Window: 0.25” clear polycarbonate
- Blower Dimensions: 10.5”L x 8” W x 8.5” H
- Blower Material: 16 Ga. carbon steel with polyester epoxy coating on all surfaces
- Weight: 55 lbs (approximately)
- Air Volume (approximately): 80 CFM (varies with filter media)
- Inlet Velocities on High (approximately):
- Carbon Pre-filter + HEPA Filter – 100 FPM
- Carbon Pre-filter + Heavy Duty Carbon Filter – 60 FPM
- Electrical: 115/1/60, 0.3 amps; 220/1/50, 0.2 amps; 8’ grounded power cord with NEMA 5-15P plug
- Sound Level: 55 dba
- Maximum Temperature Operating temperature not to exceed 170° F
- Warranty: Limited two-year warranty from the date of shipment on defects due to materials or workmanship.
- Patent # 5,843,197
- HEPA (up to 99.97% efficient on particles down to 0.3 microns)
- ASHRAE (up to 95% efficient on particles down to 0.5 microns)
- Activated Carbon
- Specialty-blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
