Icemac - Model BI - 240 -240 kg/day Block Ice Machine for Industrial Cooling
- 240 kg/d
- Vertical evaporator
- Energy-efficient
- Huge cost saving
Block ice is a type of rectangular ice and large weight. Due to the small surface area, it is the best cooling material requires long preserve time and low melting rate.
Block ice is the preferred refrigeration method in many industries. Icemac block ice machines are used in all industries which needed immediate and effective cooling. Especially, concrete plants, bakeries, fishing industry, food transportation, mining industries are extensively use those machines.

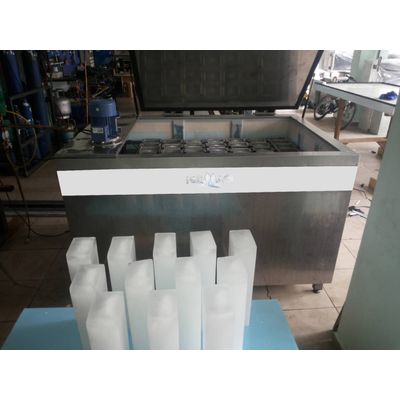

Icemac provides professional block ice machines that create multiple ice blocks per day. The block ice produced by Icemac machines is sub-cooled to around -10°C. BI-240 model block ice making machine can produce 16 pieces per round where one piece of ice block weighs 5Kg. The size of the ice will be 10x10x55 cm.
Icemac block ice machines are very simple to operate and made of durable materials that ensure high quality results with each and every use. Our block ice machine can be also installed in different conditions, convenient for transportation. Icemac bock ice machines offer maximum cooling and a slower melt and save your operation cost by using low water and energy. If you think to combine quality and efficiently, they would be best for your operation.
Even in high ambient temperatures, Icemac block ice machines are durable and reliable. With stainless steel construction and capacities ranging from 150 to 50000 kg per day, Icemac block ice machines deliver clear, fresh, sanitary block ice and eliminate your dependency on ice suppliers.
- Fast cooling & production
- High efficiency, energy saving and low maintenance
- Compact size and easy installation
- Long service life and reliable performance
- Environment friendly and low noise
- Easy to clean
- 240 kg daily production
- 16 pieces molds and each mold is 5 kg
- The machine is completely constructed by durable 304 stainless steel material, which has good quality to against rust and corrosion
- Polyetilen insulation to increase energy efficiency and eliminate corrosion
- Top brand components
- Air cooling system
- Easy to use electronic control
- 2-year guaranty period
- Circulating motor with stainless steel bar
- Ice defrost system (optional)
- Ice carrying counter (optional)
- Ice transposition system (optional)
- Ice Making Capacity: 240 kg/24h
- Cooling Capacity: 2.3 kW
- Ambient Temperature: 30-40 °C
- Water Input Temperature: Max. 20 °C
- Ice Output Temperature: -10 °C
- Ice Molds Pieces: 16 pcs
- Weight and Size of per block (W-L-H): 5 kg and 10x10x55 cm
- Ice molds material and thickness: ANSI 304 / 1mm
- Ice block production in 24hrs: 48 pcs
- Ice production time: 8h
- Cooling Mode: Air Cooling
- Refrigerant: R 404
- Evaporator Type: Copper Coil
- Pool Inner Coating: Polyetilen
- Compressor Brand and Power: Tecumseh, 2 hp, Semi – Hermetic
- Power Supply: 3P / 380-400 V / 50-60 Hz
- Power Consumption: 2 kW/h
- Dimension of plant with ice pool (W-L-H): 130x100x75 cm
- Accessories: 1 piece circulating motor 1 kW with stainless steel bar
- Optional Accessories:
- Ice defrost system
- Ice carrying counter
- Ice transposition system
