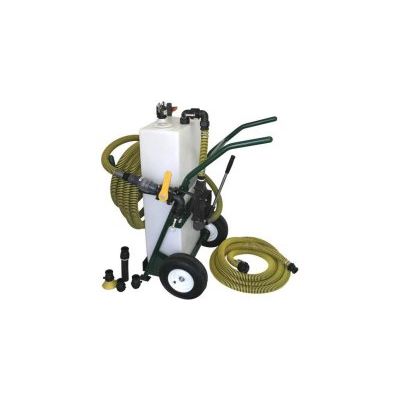

Edson - Model 285-18 -25 Gallon Waste Collection Cart For Holding Tank Pump Outs
Edson’s Manual Diaphragm Pump Out Caddy is a convenient, easy to use waste collection system that is shipped complete. Designed for small collection jobs, the cart with manual pump and 25 gallon tank makes short work of emptying boat holding tanks. It is especially safe for self service facilities and a very economical tool for emptying tanks of boats being pulled for service or storage.
The pump out caddy uses the Edson unique plumbing and hose assemblies that allows for the tank to be safely emptied by the pump while virtually eliminating the chance of accidental spillage. The pump and hose assemblies are available as separate items for those who want to use them with their own tanks and carts, trailers or boats.
Performance Features
- Manual Pump For Secure Self Service Operations
- Easy Fill & Off Load Operation
- Pump Out Rates To 15 GPM
- Self Priming Suction from
- Heights Up To 15 ft (7.6m)
- Easily Moved Around On Wide 12” Pneumatic Tires
Design Features
- Easy To Use-Low Maintenance
- Integral Hose Rack
- Vertical Mount Diaphragm Pump
- Welded Aluminum Cart With Pneumatic Tires
- All Materials Rated For Marine Use
- 25 Gallon Poly Tank
- Quick Clamp Plumbing & Hose Assemblies

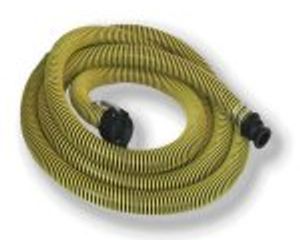

Pump Out Hose Assembly: 25’ X 1 1/2” ID Polyflex Hose, 900 Ball Valve, Sight Glass/ Check Valve, Quick Clamp Adapter, Complete Set of Deck Adapters. fig.1
Transfer Assembly: 20’ x 1 1/2” ID PVC hose assembly used to extend discharge line when needed to empty collection tank. fig.2
Pump Performance:
- Volume - 10 GPM / 68.1 LPM
- Dry Suction Lift - 15’ / 4.57m
- Discharge Head - 15’/4.57m
Pump Construction:
- Anodized Aluminum Pump
- Nitrile Valves & Diaphragm
- Stainless Steel Hardware
- Vertical Mount, Lever Action
Hose Assembly:
- 1 1/2” Hose
- Sight Glass/Check Valve
- Complete Set of Deck Adapters
- 25 ft. Length Standard
Collection Tank:
- 25 Gal. High Density Polyethylene Waste Tank
- 4” Access Port w/Threaded Cap
Cart:
- Welded Aluminum
- Baked on Polyurethane Coating
- 2 Wheel Cart Design - 12” Pneumatic Tires
