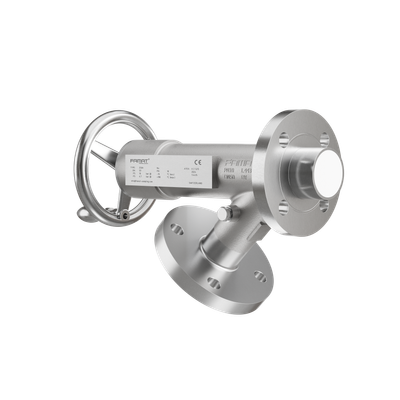

FAMAT Sampling - 250A Tank Bottom Valve for Controlled Discharges
The 250A Tank Bottom Valve is specifically engineered for efficient and precise draining, making it an ideal choice for industries requiring reliable discharge solutions from tanks. This valve, offered by Famat Sampling, has a nominal size of DN 50 (2 inches) and can operate under extreme temperatures, ranging from -20°C (-4°F) to +180°C (356°F). It is designed to withstand pressures from vacuum to 10 bar (0-145 psi), ensuring robust performance even under demanding conditions. The internal roughness of Ra ≤0.8 µm and external roughness of Ra ≤3.2 µm can be further refined through optional polishing. The valve features seals made from materials like Viton, FEP/PFA, Perfluoroelastomer FFKM, and EPDM, all complying with FDA standards. As a part of the Biar Group, a recognized entity in the sampling systems domain, Famat Sampling leverages expertise in liquid, gas, and solid sampling, delivering reliable and responsive solutions globally.
The Expanding Piston Technology of FAMAT sampling valve can be adapted to Tank Bottom valve. The versatility of the valve, combined with the proven reliability, will make this valve the perfect solution for many application in pharmaceutical business.
- 250A : MODEL
- DN 50 (2’’) : NOMINAL SIZE
- +180°C / +356°F : MAX TEMPERATURE
- -20°C / -4°F : MIN TEMPERATURE
- PN10 : PRESSURE CLASS
- Vacuum to 10 bar (0-145 psi) : PRESSURE DESIGN
- Ra ≤0.8 µm (polishing on request) : INT. ROUGHNESS
- Ra ≤3.2 µm (polishing on request) : EXT. ROUGHNESS
- Viton, Viton/FEP/PFA, Perfluorelastomer FFKM; EPDM (All FDA) : SEALS MATERIAL
