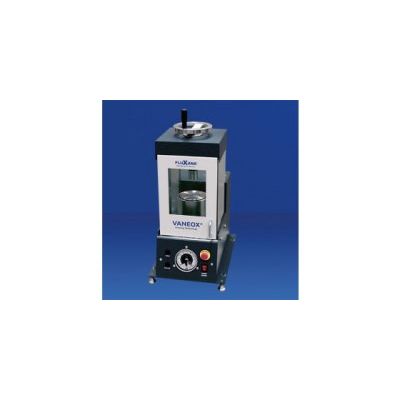

VANEOX - Model PR-25A -25t XRF Automatic Presses
for X-ray fluorescence analysis. - automatic pressing, manual release - use with typical dies for all common preparation techniques e.g. - 32mm - 40mm - 40/32mm rings - 51,5/35mm rings - also customer specific diameters with or without ring possible.
Most popular related searches
- Max pressure: 25t
- Pressure display: 0-25t
- Piston: 115mm
- Stroke: 30mm
- Bolster Screw diameter: 40mm
- Bolster Screw Travel: 200mm
- Min. distance between pressing faces: 70mm
- Max.. distance between pressing faces: 170mm
- Voltage: 230V/50Hz, 110V/60Hz
- Dimensions (W x H x D): 340 x 840 x 475mm
- Weight: 115kg
Dimensions: LxHxD 340 x 840 x 475 mm
Packing: box
Weight: 115.00kg
