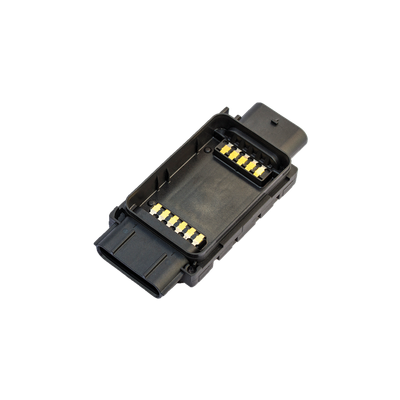

2E Mechatronic - Housing for NOx Sensor Electronics
The housing for NOx sensor electronics produced by 2E mechatronic GmbH & Co. KG is designed to endure the rigorous environment near vehicle exhaust systems. Made from glass fiber-reinforced PBT (polybutylene terephthalate), this material is known for its outstanding durability under thermal and mechanical stress, making it suitable for long-term use. The housing accommodates complex NOx sensor electronics used to measure nitrogen oxide emissions, crucial for reducing harmful pollutants produced during fuel combustion. It features advanced bonding technology with options for various contact surface finishes including tin, silver, and gold plating, offering flexibility in design and application. The housing dimensions are 55 x 80 x 20 mm and are manufactured through fully automated processes ensuring high quality and maintaining competitiveness in global markets. The facilities are certified to IATF 16949, ensuring consistent production of high-standard components tailored for specific customer requirements.
- Insulating body material : PBT, glass fiber reinforced, laser-markable
- Contact material : Copper wrought alloy, bondable
- Contact surface : selectively tinned, silvered, gold-plated
- Dimensions : 55 x 80 x 20 mm
- Special features : Bonding technology – variant management – fully automated production – 8 variants – 5+6 ontacts with bondable connection, laser welding edge
Housing technology for sensor electronics for nitrogen oxide measurement
The abbreviation NOx stands for oxides of nitrogen, primarily nitrogen monoxide and nitrogen dioxide. These gases are produced, among other things, during the combustion of fuel in the engine and are treated in the exhaust system. This process minimizes the emission of dangerous nitrogen oxides and helps improve air quality.
High-quality NOx housing technology
The complex sensor electronics for measuring nitrogen oxides require a robust housing. Mounted near the exhaust system, the housing must be able to withstand various thermal and mechanical stresses. Temperature differences and vibrations place strain on the plastic of the housing. The glass-fiber-reinforced PBT can withstand these stresses over very long periods of time and can also be machined with dimensional accuracy. In addition to dimensional accuracy, cleanliness plays a key role in housings for miniaturized electronics, especially in bonding applications. In addition to avoiding metallic particles during the process, the bonding surfaces must also be protected against any greasy contamination. This must be considered when designing the system, gripper systems, and tools. Furthermore, the handling of the inserts and finished parts must be specially coordinated. Manufacturing in fully automated process chains allows for large volumes with outstanding quality. This also ensures competitiveness in globalized markets. This consistently high quality is further assured by certification according to IATF 16949 and is regularly tested.
Housing technology for sensor electronics from the specialist
Our manufacturing methodology allows us to respond to customer requirements with the greatest possible flexibility. This applies, for example, to the housing shape and size, as well as the selection of materials used, such as plastics, contacts, or sockets. With a housing specifically tailored to the product and special structural features, we continue to create a unique product.
