ETM - Model ETM 770-LTE -2G-3G-4G Cellular Signal Analyser
Hand Held Cellular Network Monitoring Tool, International Coverage. Measure & Record 2G/3G/LTE 4G Cellular Signal Strength, Quality + Other Parameters. ETM manufacture a range of battery powered hand held tools for monitoring key parameters of any cellular network. Supporting LTE 4G, 3G UMTS, & 2G GPRS (with LPWAN CAT-M1/NB2) versions for all geographic locations. By measuring parameters like signal strength, base station, cell information, the ideal operator and antenna configuration can be selected. Information can be logged to ETM’s IoT Cloud Platform for storage or further analysis.

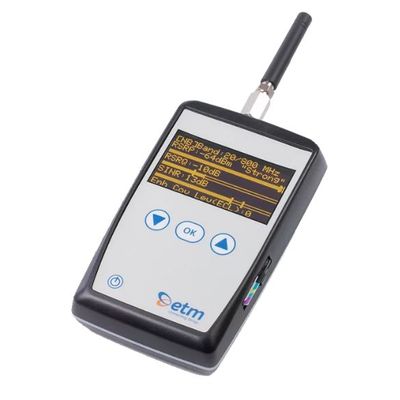

The ETM770 is a handheld battery powered device with OLED screen showing signal strength as well as associated network data. To function correctly the unit requires a suitable SIM to be fitted, and should be connected to the intended antenna(s). Antenna connection is via SMA Jack connector(s), an SMA to FME adaptor is provided. Also included with the kit is a car charger and a USB cable for charging/programming.
- Supports 4G LTE Band 28, 700Mhz & Band 5, 850Mhz
- Send Data to Cloud Apps – Integrates with AWS
- Integrates with ETM’s EWO Cloud Monitoring Service
- Stores Multiple APN’s
- Supports Roaming SIM’s
- API Support for 3rd Party
- Battery Powered, Charge via USB
- OLED Screen
- SMA Connection
Part Number: ETM770-LTE
Part.no
20593
Module
Cinterion PLS63-W
Cellular
2G, 3G and 4G
GNSS (GPS)
GPS/GLONASS/BeiDou/Galileo
Frequency/bands
GSM/GPRS (2G) Frequencies:
850/900/1800/1900 MHz
UMTS (3G) Bands:
1, 2, 3, 4, 5, 6, 8, 9, 19
FDD-LTE (4G) Bands:
1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
TD-LTE (4G) Bands:
38, 40, 41
Dimensions
115 x 69 x 28 mm
Weight
130 g
Battery
3,7 V, 3 Ah internal LiPo rechargeable battery pack
Power supply
5 V via mini USB
Battery lifetime
Scanning mode: More than 48 hours
Standby mode: More than 6 months
Operating temperature
-20°C to +55°C
Antenna
SMA/FME (with supplied adapter)
Interfaces
Mini USB connector for programming and recharging
Included items
Mini USB cable, SMA to FME antenna adapter, stub antenna, hardcase, manual
Typical Applications:
- Check signal availability for a potential or existing installation
- Determine the best operator for a particular location
- Optimize Antenna types
- Optimize Antenna location
- Cloud Connectivity for Data Logging & Paper Trail
- Integrates with API Server l
