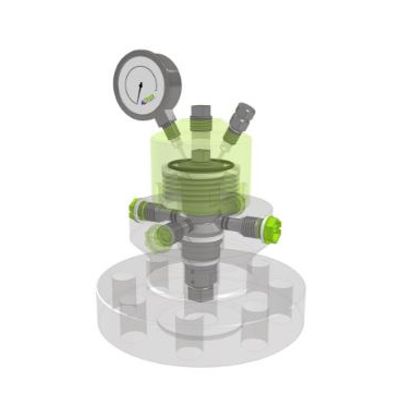

Axess - 2inch High Pressure Hydraulic Access Fitting System
The Axess 2" Hydraulic Access and Retrieval System provides a complete solution for the online safe, reliable installation of probes and coupons from high pressure piping, and vessels at pressures of up to 6,000 PSI (414 Bar) and temperatures up to 204°C (400°F).
Axess offers a complete range of high pressure access fitting assemblies for installation of intrusive corrosion monitoring and chemical injection devices. The product range comprises both the 2” mechanical system as well as the 2” hydraulic system. The Axess-Corrosion Hydraulic Access and Retrieval System provides a complete solution for the online safe, reliable installation and retrieval of probes and coupons from high pressure piping, and vessels at pressures up to 10,000 PSI (690 Bar) and temperatures of up to 204 °C (400 °F). Axess 2” Hydraulic Access Products are compatible and interchangeable with industry standard products also supplied by other vendors.
Axess 2” Hydraulic Access and Retrieval system comprises the following components:
- High pressure hydraulic access fitting
- Hydraulic hollow and solid plugs
- Heavy duty pressure retaining covers (up to 10,000 PSI/690 Bar)
- Hydraulic retrieval tool and service valve (see separate brochure and data sheet)
