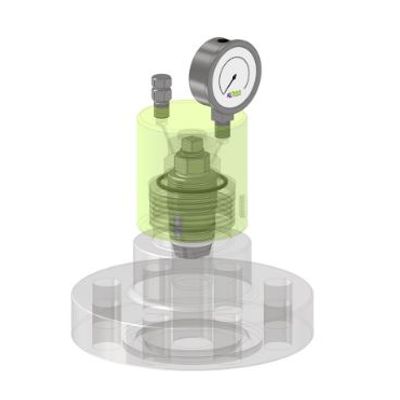

Axess - Model AX2HP -2inch High Pressure Mechanical Access Fitting System
The Axess 2" Mechanical Access and Retrieval System provides a complete solution for the online safe, reliable installation of probes and coupons from high pressure piping, and vessels at pressures of up to 6,000 PSI (414 Bar) and temperatures up to 204°C (400°F).
Axess offers a complete range of high pressure access fitting assemblies for installation of intrusive corrosion monitoring and chemical injection devices. The product range comprises both the 2” mechanical system as well as the 2” hydraulic system. The 2” Access System is a high pressure access system for the mounting of devices into pipework and vessels. The system allows insertion and retrieval of the devices under pressure, enabling monitoring to be maintained continuously without the need to shut down the process.
Mechanical Access Fittings have an internal 1 3/4" UNF parallel thread to receive carrier plugs that connect to various devices and seal into place at pressures up to 10,000 PSI (689 Bar) and temperatures up to 204 °C (400 °F). An external 3" ACME thread enables installation of portable isolation valves used while retrieving devices under line pressure. Axess 2” Mechanical Access products are compatible and interchangeable with industry standard products.
