2YSLCYK-J 3 PLUS EMC
Fromkabeltec GmbH
Motor connecting cable with overall copper braided screening used for the connection of a frequency converter with a frequency converter motor. Employed in connection with machine tools, handling gear, machining and processing equipment, industrial robots, assembly lines, etc. when exposed to harsh mechanical strain. Fixed installation and occasional free movement, in dry, moist, and wet rooms.
Most popular related searches
Special characteristics
- low capacitance
- excellent EMC performance
- outdoor installation (black outer sheath)
Power ratings (30°C Air temperature):
- 3x1,5+3G0,25 18 Amp
- 3x2,5+3G0,5 26 Amp
- 3x4+3G0,75 34 Amp
- 3x6+3G1,0 44 Amp
- 3x10+31,5 61 Amp
- 3x16+3G2,5 82 Amp
- 3x25+3G4 108 Amp
- 3x35+3G6 135 Amp
- 3x50+3G10 168 Amp
- 3x70+3G10 207 Amp
- 3x95+3G16 250 Amp
- 3x120+3G16 292 Amp
- 3x150+3G25 335 Amp
- 3x185+3G35 382 Amp

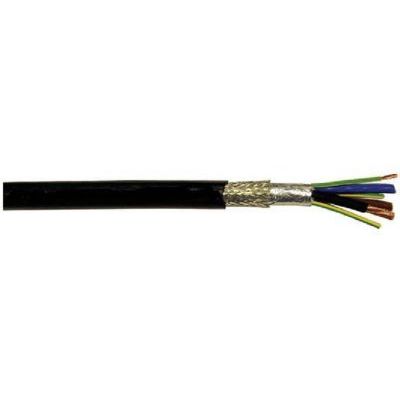

Construction
- fine wire of plain copper wires
- strand structure, according to VDE 0295, class 5
- core insulation of Polyethylene (PE)
- colour coded conductors
- concentric twisted cores (splitted green-yellow earth conductor)
- aluminium foil, screen braiding of copper wires
- black or transparent outer sheath of special PVC
- outer sheath special PVC
Shield connector:
To observe radio shielding acc. to EN 55011, the screen has to be contracted all around, both-sided and extensive.
