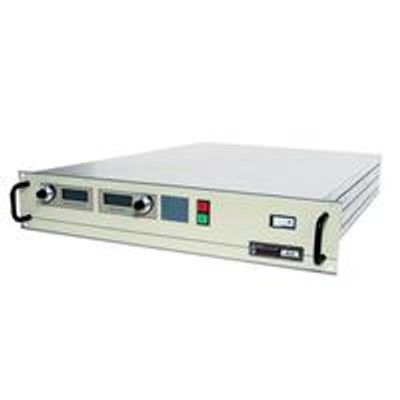

Spellman - Model XLG Series -3-260W Industrial X-Ray Generators
Spellman’s XLG Series of X-ray generators are well regulated high voltage power supplies with output voltages to 130kV and very low ripple achieved through the use of advanced resonant conversion techniques. Extremely stable voltage and emission current outputs result in significant performance improvements over previously available technology.
The XLG Series x ray generator provides all the power, control and support functions required for X-ray applications including a regulated dc filament supply. These units incorporate local and remote programming, monitoring, safety interlock, short-circuit and overload protection.
Typical applications:
- Plating Measurement x-ray generator
- Mineral Analysis x ray generator
- X-ray Fluorescence xray high voltage power supply
- Output Voltages to 130kV
- Ground Referenced Filament Supply
- “Hot Anode”, Positve Polarity
- Local & Remote Programming
Input Voltage:
115Vac±10%, 50-60Hz single phase or
220Vac±10%, 50-60Hz single phase.
Voltage and Current Control:
Local: continuously adjustable from zero to maximum rating via a ten-turn potentiometer with a lockable counting dial.
Remote: 0 to +10Vdc proportional from 0 to full output. Accuracy: ±1%. Input Impedance: 10Mohm.
Filament:
Specify at time of order:
FH: 9A, 3V.
FL: 3A, 3V.
Preheat level is 0.45 amps in standby
Voltage Regulation:
Load: 0.005% of full output voltage no load to full load.
Line: 0.005% for input voltage range change.
Current Regulation:
Load: 0.05% of full current ±100µA from 0 to full voltage.
Line: 0.05% of rated current over specified input range.
Ripple:
0.03% rms below 1kHz.0.75% rms above 1kHz.
Temperature Coefficient:
100ppm/°C.
Stability:
0.01%/8 hrs after 1/2 hour warm-up.
0.02% per 8 hours (typical).
Cooling:
Free air convection.
Metering:
Digital voltage and current meters (3.5 digits), 1% accuracy.
HV Output Cable:
10’ (3.3m) of shielded HV cable removable at rear.
I/O Connectors:
25 pin D-type for control interface with mating connector provided.
Dimensions:
30 to 60kV: 3.5”H x 19”W x 19”D (8.9cm x 48.3cm x 48.3cm).
80 to 130kV: 3.5”H x 19”W x 24”D (8.9cm x 48.3cm x 61.0cm).
Regulatory Approvals:
Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive.
FRONT PANEL STATUS INDICATORS:
Overvoltage Voltage Control Mode
Overtemperature Current Control Mode
Regulation Error Interlock Open
Arc Interlock Closed
HV ON: Red HV OFF: Green
OPTIONS
APT - Adjustable Power Trip
AT - Arc Trip
SS(x) - Non-Standard Slow Start
NSS - No Slow Start
IO - Instant ON
LL(x) - Extra Length HV Cable
SL - Slides
Electronic Component (Power Source)
XLG series is intended for installation as a component of a system. It is designed to meet CE standards, with conditions of acceptance often being: customer provided enclosure mounting, EMC filtering, and appropriate protection, and isolation devices. The XLG series is not intended to be operated by end users as a stand-alone device. The XLG series power supply can only be fully assessed when installed within a system, and as a component part within that system.
