SF Marina AB
SF Marina - Model SFBW300 -3-Meter Wide All-Concrete Breakwater
FromSF Marina AB

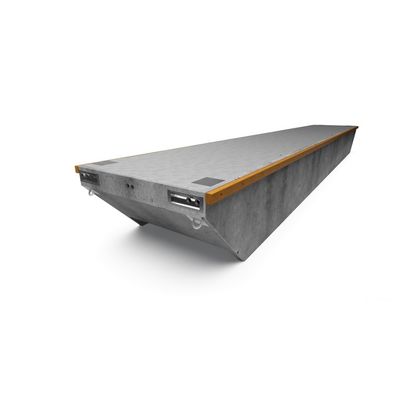

SF300 is a 3-meter wide all-concrete Breakwater. In our experience, 3 meters in width is minimum for the successful use of the turbulence chamber, “Wings,” the pontoon. SF300 Series has been developed over 35 years and is now a very well-tested product that works in exposed locations.
Length: 10, 12, 15, 20 m
Width: Incl. fender 3.25 m
Width: Excl. fender 3.0 m
Height: 1.8 m
Weight: Approx. 20, 24, 30, 40 ton
Freeboard: Approx. 0.5 m
Buoyancy: Approx. 500kg/m²
Connectors: 2 units W 300/400 per joint
Breaking load: W 300: 2x70 ton per joint
Breaking load: W 400: 2x105 ton per joint
