COMMANDER - Model T858 -3 Offset Track Trencher with Optional Features

• Remove spoils more efficiently using the well-designed conveyor.
• Trench more efficiently with less chain wear due to its low-speed, high-torque, splined headshaft motor and variable chain speed.
• Improve job monitoring between the Murphy PowerView system and the exclusive Vermeer TEC 2000® Electronic Control System.
• Enhance visibility and productivity with an enclosed cab that elevates the operator 3’/.9 m.
• Increase operator safety thanks to the industry’s first Rollover Protective Structure (ROPS).
• Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3,000-hour or 5-year/5,000-hour warranty on the components of the closed loop hydrostatic systems.
• See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

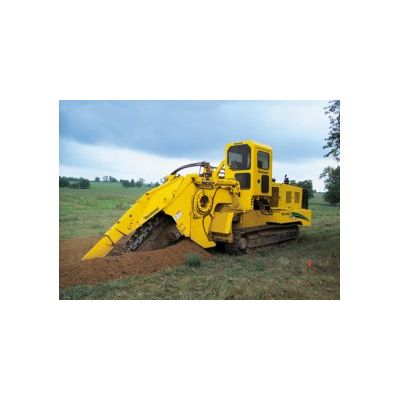

The Vermeer® T858 COMMANDER® 3 hydrostatic trencher is a rugged rock-trenching solution. Within its class of track trenchers, the T858 COMMNADER 3 is the only offset trencher with a curved conveyor belt. This allows for better spoil discharge up to 56" (142.2 cm) in height with slower belt speeds. The T858 COMMANDER 3 offset capability gives utility, water, and sewer contractors the additional access to trench alongside jobsite obstacles such as guardrails, curbsides, buildings and walls with greater ease and precision.

Put the 350 hp (261 kW) Caterpillar C9 Tier 3 engine to the test on even the toughest trenching jobs. The Vermeer auto-tilt track system utilizes an oscillating frame that allows the track to follow the ground’s contour, ensuring a vertical trench on slopes up to 10 degrees. Combine these features with the TEC® Plus electronic control system and the Murphy PowerView electronic monitoring system, a Rotary Power headshaft motor, and the Vermeer worldwide dealer support network, and you’ll see why Vermeer is the proven leader in trenching applications.

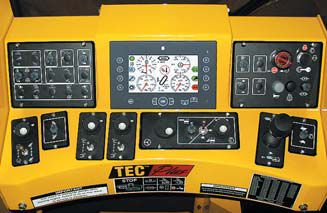

The new TEC Plus electronic control system features CAN bus technology, which utilizes multiple control modules located throughout the machine for real-time performance data and advanced troubleshooting capabilities.

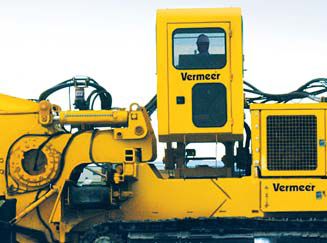

Elevating cab. The T858 COMMANDER 3 features an elevating cab and provides good visibility of the trench and spoil. The ROM cab structure can be mounted on either side of the machine and provides protection for the operator.

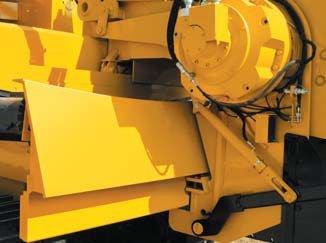

Large hydrostatic headshaft motor. The high-torque headshaft motor is designed for transmission of full horsepower 100 percent of the time.

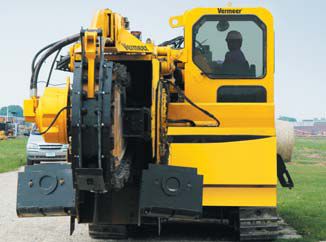

Offset capability. The T858 COMMANDER 3 is the first in the 350 hp (261 kW) class of Vermeer hydrostatic trenchers with offset capabilities. Offset capability gives contractors the additional access to trench alongside jobsite obstacles.

Chain speed variability. A hydrostatic transmission provides a more precise range of cutting speeds, allowing the operator to better match the machine to the conditions.

Transport Dimensions

Approach angle: 17°
Height: 11` (3.4 m)
Length with 40" (101.6 cm) end idler and 6` (1.8 m) boom: 40` (12.2 m)
Length with 40" (101.6 cm) end idler and 8` (2.4 m) boom: 42` (12.8 m)
Weight range: 73,000 lb – 98,000 lb (33,112.2 kg – 44,452.1 kg)
Width: 102" (259.1 cm)

Engine

Make and model: Cat C9 ACERT Tier 3
Gross horsepower: 350 hp (261 kW)
Rated engine rpm: 2200
Number of cylinders: 6
Fuel tank capacity: 280 gal (1059.9 L)
Operating range: 15 hr
Fuel consumption @ full load: 18.3 gph (69.3 L/h)
Max engine operating angle: 40°
Air cleaner: Dry-type exhaust-aspirated
Aspiration: Turbocharged and air-to-air aftercooled (ATAAC)
Cooling medium: Liquid
Electrical system: 24 V DC
Oil filter: Full-flow

Tracks

Auto self-level: Yes
Ground pressure: 11.8 – 15.7 psi (81.4 – 108.2 kPa)
Tilt track available: Yes
Tilt track max angle: +/- 9° or 12°
Track drive type: Dual-path hydrostatic with planetary transmission
Track length: 12.3` (3.7 m)
Track pad type: Single, double or triple grouser
Track pad width: 20", 24" (50.8 cm, 61 cm)
Track size: D6
Travel speed max (high range): 213 fpm (64.9 m/min)
Travel speed max (low range): 106.3 fpm (32.4 m/min)
Parking and emergency brake: Spring-applied, hydraulic release, wet disc brake
Service brakes: Hydrostatic

Conveyor

Belt width: 24" (61 cm)
Conveyor belt speed range: 0 – 1122 fpm (0 – 342 m/min)
Conveyor belt style: Cleat- or finger-type, sidewall, center guide rib
Conveyor length range: 86" (218.4 cm)
Conveyor shift available: Yes
Conveyor shift distance: 14" (35.6 cm)
Conveyor style: Flat
Discharge direction: Right or left
Discharge height range: 72" (182.9 cm)

Cab

Air conditioner / heater: Standard
Air suspension seat: Yes
AM / FM stereo with weather band:
Optional with cab only
Elevating: Yes
Pressurized / Filtered air: Yes
Roll Over Module (ROM): Yes

Hydraulic System

Oil tank capacity: 225 gal (851.7 L)
Oil type: Vermeer HyPower
Pressure setting: 2500 psi (172.4 bar)
Pump flow: 30 gpm (113.6 L/m)
Type: Pressure- and flow-compensated (load-sensing)

Trencher Attachment

Boom depth options: 6`, 8` (1.8 m, 2.4 m)
Boom top rollers: Optional
Chain speed range: 361 – 529 fpm (110 – 161.2 m/min)
Cutting width range: 14" – 30" (35.6 cm – 76.2 cm)
Digging chain size: 4502 single,
5501 single or 4501 double
Idler diameter: 40" (101.6 cm)
Offset range – left of center: 32.5" (82.5 cm)
Offset range – right of center: 32.5" (82.5 cm)
Trencher drive type: 2 pumps and 1 motor hydrostatic
