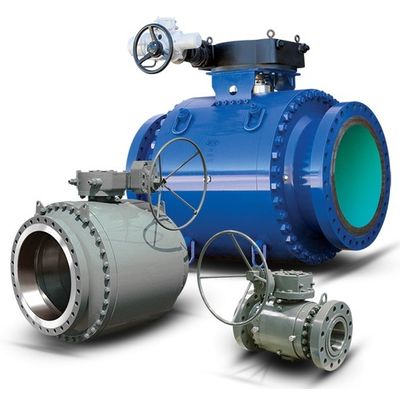

SCV - Model API 6D -3-Piece Trunnion Ball Valves
3-Piece Trunnion Ball Valves - API 6D. Full & Reduced Port. Bolted Body Construction. Classes: 150 - 2500. Sizes: 2" - 42".
Most popular related searches
SCV Valve manufactures some of the most dependable forged steel Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the SCV design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred ball valves on the market.
External Trunnion:
- 2” - 14” 150 & 300
- 2” - 12” 600 & 900
- 2” - 4” 1500 & 2500
Internal Trunnion:
- 16” & up 150 & 300
- 14” & up 600 & 900
- 6” & up 1500 & 2500
- Basic Design: API 6D
- Wall Thickness: API 6D
- Face-to-Face Dimension: API 6D
- Flange End Dimension: ANSI/ASME B16.5 (1” to 24”)
- ANSI/ASME B16.47 (26” & up)
- Butt-Weld End Dimension: ANSI/ASME B16.25
- Inspection & Testing: API 6D
- Fire Safe Design: API 607/BS 6755
- Class: 150; Sizes: 2" - 42"; Full Port
- Class: 300; Sizes: 2" - 42": Full Port
- Class: 600; Sizes: 2" - 42": Full Port
- Class: 900; Sizes: 2" - 42"; Full Port
- Class: 1500; Sizes: 2" - 24": Full Port
- Class: 2500; Sizes: 2" - 12": Full Port
- Class: 150; Sizes: 2" - 42"; Reduced Port
- Class: 300; Sizes: 2" - 42": Reduced Port
- Class: 600; Sizes: 2" - 42": Reduced Port
- Class: 900; Sizes: 2" - 42"; Reduced Port
- Class: 1500; Sizes: 2" - 24": Reduced Port
- Class: 2500; Sizes: 2" - 12": Reduced Port
