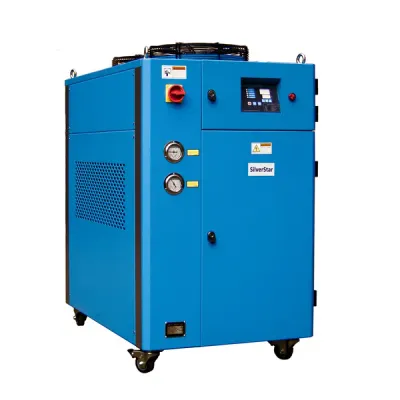

SkylineModel SAC-03 -3 Ton Air Cooled Process Chiller

SHARE

This 3 Ton Air Cooled Process Chiller is designed for industrial applications requiring efficient cooling with a capacity of 36,000 BTU/hr. The unit operates with a cooling range from 42°F to 77°F (5°C to 25°C) and features a stainless steel reservoir holding up to 15 gallons of water. Designed for quiet operation, it is suitable for indoor use and comes with a Copeland Scroll compressor using R407C refrigerant. The chiller supports a water flow rate of 30 GPM and has 1-inch MPT inlet and outlet connections. It is ideal for processes requiring closed-loop water circulation and is widely used in various industries. The chiller weighs 600 lbs and is shipped in a 50 x 32 x 60-inch wooden crate. It comes with a one-year warranty against factory defects. Payment must be completed before shipping, and the customer is responsible for shipping and handling fees.

Most popular related searches

Misc Specifications

  • Compressor: Copeland Scroll
  • Refrigerant: R407C
  • Inlet and Outlet: 1 in MPT
  • Stainless steel reservoir
  • Quiet design for indoor use

Applications
Any applications and processes with close loop water circulation for chilled water 5°C to 25°C.We have more than one thousand Skyline Process Chillers running all over the country in a wide variety of industries include:

  • Plastic injection molding & blow molding
  • Integrated circuits test
  • Die casting
  • Printing
  • Rubber
  • Pharmaceutical
  • Chemical
  • Beverages (wine and dairy)
  • EDM, MRI, farm, Motor, metal fabrication, metal polish.

Shipping

  • Shipping weight: 600 lbs
  • Shipping dimension: 50 x 32 x 60 in
  • shipping method: LTL wooden crated

Warranty
One year factory defects
