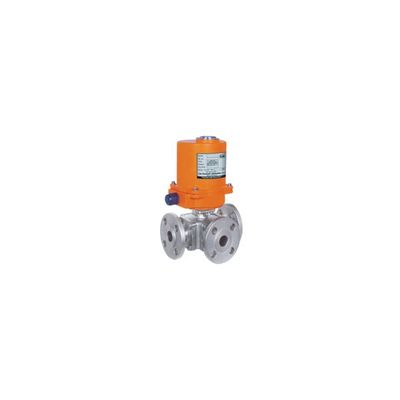

Cair - 3 Way, 4 Way, 5 Way Ball Valve

• Manufacturer : Cair Euromatic Automation
• Brand / Model: Cair / MOD
• Characteristic: On – Off Type
• Travel: 90 Degree
• Indicator: Continuous Position Indicator
• Phase: Single Phase
• Power Supply: 220V AC, 50 Hz
• Body Material: Aluminum Alloy
• Ambient Temperature: 20°C ~ 80°C
• Motor Insulation: Class F
• Protection Class: IP – 67 Weather Proof
• Manual Adjustment: Wrench Setting
• Limit Switch: 1NO + 1NC output of 220V AC
• Position Power Failure: Stay Put
• Manual Override: Provided

• Modulating Controller: 4 ~ 20 mA (Available on request)
• Potentiometer Feedback: Available on request
• Integral Starter unit: Available on request
• Control Panel: Available on request

Ball Valve

• Body: ASTM A351 Gr. CF 8 - CF 8M / ASTM A216 Gr. WCB
• Ball: ASTM A351 Gr. CF 8 - CF 8M
• Stem: Stainless Steel AISI 304 / AISI 316
• Gland: Stainless Steel AISI 304 / AISI 316
• Seat & Seals: PTFE (Glass Filled, Carbon Filled Teflon - Optional in case of high temp.)
• Working Pressure: ANSI150/ANSI300/PN16-.PN40PN25
• Temperature Range: -25°Cto180°C
• End Connection: Screwed to BSP / NPT Flanged to ANSI 150 / ANSI 300 / PN 16
• Triclover end / SOCKET WELD ( On Request)

• Electrical Actuator Operated.
• Worm Gear Operated.
• Bear Shaft Valve Suitable For Client Actuator.

• Body & End are Investment Cast.
• Self adjusting stem packing.
• Available in 3 way & 4 way & 5 Way L - Port / T Port / X Port.
• 4 piece ball seats.
• Blow - out proof stem design / Anti Blow - out.
• proof stem Design.
• 100% air tested under water at 80-100 psi.
• ISO 5211 direct mounting pad.
