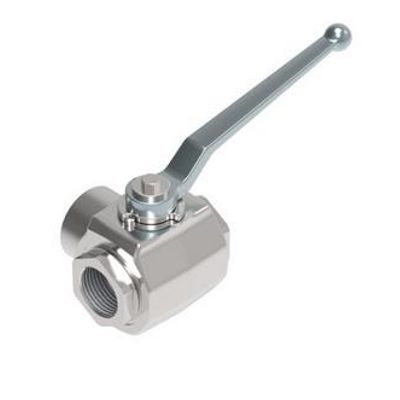

Pister - Model SK3 -3-Way Diverter Forged Ball Valve
The sealing function of BK3 and SK3 valves is only given when the pressure standing on the closed port is zero or if the pressure between the connected ports is higher than the pressure on the closed port. No shut -off position for third port is possible! To apply pressure from all ports, a special variant is required. Add A to the order code.
Most popular related searches
3 way ball valve
ball valve
compression fitting
sanitary ball valve diverter
forged valve
plastic seal
diverter valve
pressure seal
Material:
- Steel
Connector:
- Compression fitting light and heavy series, BSP thread, NPT thread, UNC/UNF female thread, bulkhead connection, thread connection.
Description
- Dimensions: DN20 to DN50
- Body: S355
- Ball + stem: free cutting steel, stainless steel (1.4571/316Ti)
- Sealing: plastics
- Pressure range: up to PN400 (note table of dimensions)
- Field of application: hydraulics, particularly in construction industry and agricultural machinery, mining industry (Material of seals and body adapted to application!)
- Temperature range: standard: -20°C to +80°C (-4 to +176°F)
- Surface: black oxide finishing, zinc-layer, zinc nickel
