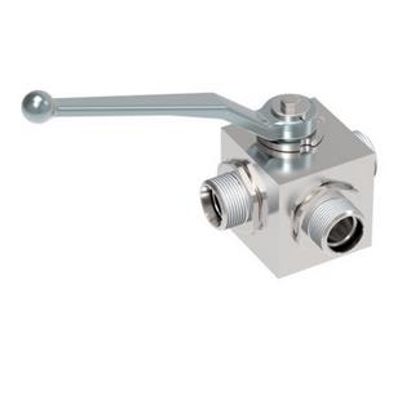

Pister - Model BK3 -3-Way Stainless Steel Valves
The sealing function of 3-way ball valves is only given when the pressure standing on the closed port is zero or if the pressure between the connected ports is higher than the pressure on the closed port. No shut -off position for third port is possible! To apply pressure from all ports, a special variant is required. Add A to the order code.
Most popular related searches
Material:
- stainless steel
Connector:
- compression fitting light and heavy series, BSP thread, NPT thread, Thread connection
Description
- Dimensions: DN04 to DN50
- Body: stainless steel (1.4571/316Ti)
- Ball + stem: stainless steel (1.4571/316Ti)
- Sealing: plastics
- Pressure range: up to PN400 (note table of dimensions)
- Field of application: chemical and petrochemical industry, environmental installations, off-shore, water (Material of seals and body adapted to application!)
- Temperature range: standard: -20°C to +80°C (-4 to +176°F)
- Surface: uncoated
